Functions
fsp_err_t	R_RMAC_Open (ether_ctrl_t const p_ctrl, ether_cfg_t const const p_cfg)
	After RMAC, Switch and PHY-LSI are reset in software, an auto negotiation of PHY-LSI is begun. Afterwards, the link signal change interrupt is permitted. Implements ether_api_t::open. More...

fsp_err_t	R_RMAC_Close (ether_ctrl_t *const p_ctrl)
	Disables interrupts. Removes power and releases hardware lock. Implements ether_api_t::close. More...

fsp_err_t	R_RMAC_BufferRelease (ether_ctrl_t *const p_ctrl)
	Move to the next buffer in the receive buffer list. Implements ether_api_t::bufferRelease. More...

fsp_err_t	R_RMAC_RxBufferUpdate (ether_ctrl_t const p_ctrl, void const p_buffer)
	Change the buffer pointer of the current rx buffer descriptor. Implements ether_api_t::rxBufferUpdate. More...

fsp_err_t	R_RMAC_LinkProcess (ether_ctrl_t *const p_ctrl)
	The Link up processing, the Link down processing, and the magic packet detection processing are executed. Implements ether_api_t::linkProcess. More...

fsp_err_t	R_RMAC_WakeOnLANEnable (ether_ctrl_t *const p_ctrl)
	The setting of RMAC is changed from normal sending and receiving mode to magic packet detection mode. Implements ether_api_t::wakeOnLANEnable. More...

fsp_err_t	R_RMAC_Read (ether_ctrl_t const p_ctrl, void const p_buffer, uint32_t *const length_bytes)
	Receive Ethernet frame. Receives data to the location specified by the pointer to the receive buffer. In zero copy mode, the address of the receive buffer is returned. In non zero copy mode, the received data in the internal buffer is copied to the pointer passed by the argument. Implements ether_api_t::read. More...

fsp_err_t	R_RMAC_Write (ether_ctrl_t const p_ctrl, void const p_buffer, uint32_t const frame_length)
	Transmit Ethernet frame. Transmits data from the location specified by the pointer to the transmit buffer, with the data size equal to the specified frame length. In the non zero copy mode, transmits data after being copied to the internal buffer. Implements ether_api_t::write. More...

fsp_err_t	R_RMAC_TxStatusGet (ether_ctrl_t const p_ctrl, void const p_buffer_address)

fsp_err_t	R_RMAC_CallbackSet (ether_ctrl_t const p_api_ctrl, void(p_callback)(ether_callback_args_t ), void const p_context, ether_callback_args_t *const p_callback_memory)

fsp_err_t	R_RMAC_SetWriteConfig (ether_ctrl_t const p_ctrl, rmac_write_cfg_t const p_write_cfg)
	Set configuration for tx frame. This API must call before ether_api_t::write. More...

fsp_err_t	R_RMAC_GetTxTimestamp (ether_ctrl_t const p_ctrl, rmac_timestamp_t const p_timestamp)
	Get timestamp of transmitted frame. This API must call after ether_api_t::write. More...

fsp_err_t	R_RMAC_GetRxTimestamp (ether_ctrl_t const p_ctrl, rmac_timestamp_t const p_timestamp)
	Get timestamp of received frame. This API must call before ether_api_t::read. More...

Detailed Description

Driver for the Ethernet peripheral on RA MCUs. This module implements the Ethernet Interface.

Overview

This module transmits and receives Ethernet (IEEE 802.3) frames. This module provides single MAC layer interface.

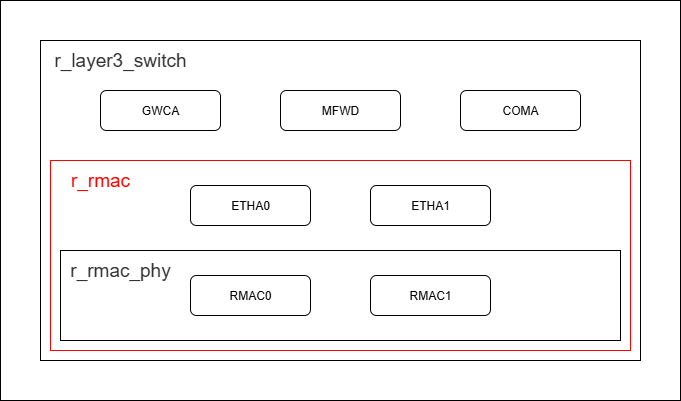

The following figure shows which IPs are used by the r_rmac module.

ESWM block diagram

Features

The RMAC module supports the following features:

Transmit/Receive processing
Optional zero-copy buffering
Callback function with returned event code
Auto negotiation support
Flow control support
Multicast filtering support
Broadcast filtering support
Promiscuous mode support
Get the frame transmission and reception times
Port based forwarding function for transmission/reception
Descriptor format selection when transmitting

Supported Devices

Device Group	Devices
RA8	RA8D2, RA8M2, RA8P1, RA8T2

Configuration

Build Time Configurations for r_rmac

The following build time configurations are defined in fsp_cfg/r_rmac_cfg.h:

Configuration	Options	Default	Description
Parameter Checking	Default (BSP) Enabled Disabled	Default (BSP)	If selected code for parameter checking is included in the build.
Read Buffer Size Checking	Enabled Disabled	Disabled	If selected code for buffer size checking is included in the build.

Configurations for Networking > Ethernet MAC (r_rmac)

This module can be added to the Stacks tab via New Stack > Networking > Ethernet MAC (r_rmac). Non-secure callable guard functions can be generated for this module by right clicking the module in the RA Configuration tool and checking the "Non-secure Callable" box.

Configuration	Options	Default	Description
General
Name	Name must be a valid C symbol	g_ether0	Module name.
Channel	Must be an integer greater than or equal to 0.	0	Write the ether channel number.
Zero-copy Mode	Disable Enable	Disable	Enable or disable zero-copy mode.
Flow control functionality	Disable Enable	Disable	Enable or disable flow control.
MAC address	Must be a valid MAC address	00:11:22:33:44:55	MAC address of this channel.
Filters
Multicast Mode	Disable Enable	Enable	Enable or disable multicast frame reception.
Promiscuous Mode	Disable Enable	Disable	Enable this option to receive packets addressed to other NICs.
Broadcast filter	Must be a valid non-negative integer with maximum configurable value of 65535.	0	Limit of the number of broadcast frames received continuously
Buffers
Padding size	Disable	Disable	The padding size that is automatically inserted into the received packets
Padding offset	Must be less than 64 bytes.	0	The offset into a receive buffer to insert padding bytes.
TX queue length	Value must be an integer	3	Number of buffers per TX queue.
RX queue length	Value must be an integer	3	Number of buffers per RX queue.
TX queue num	Value must be an integer	2	TX queue num
RX queue num	Value must be an integer	2	RX queue num
Number of TX buffer	Value must be an integer	12	Number of transmit buffers
Number of RX buffer	Value must be an integer	12	Number of receive buffers
Buffer size	Must be at least 1514 which is the maximum Ethernet frame size.	1514	Size of Ethernet buffer
Allocate RX buffer	Disable Enable	Enable	Allocates the RX buffer when generating the configuration structure
Number of node num	Value must be an integer	24	Number of receive buffers
Interrupts
Magic packet interrupt priority	MCU Specific Options		Select the magic packet detection interrupt priority.
Callback	Name must be a valid C symbol	NULL	Callback provided when an ISR occurs
Timestamp
TS queue length	Value must be an integer	8	Timestamp queue length.
Forwarding
Transmission descriptor format	Transmission ethernet descriptor Transmission direct descriptor	Transmission direct descriptor	The transmission direct descriptor could be used, for example, for non-routable protocol forwarding (network control) or for CPU-CPU communication and the transmission ethernet descriptor could be used for all normal ethernet transmissions.
Port based forwarding for reception	Enabled Disabled	Disabled	Port based forwarding function forwards all frames from a port to other ones when receiving.
Link
Link monitored ports	MCU Specific Options		Select ports to be monitored for link up detection.
Link Detection	Default port (same as Channel) All monitored ports Any monitored port	Default port (same as Channel)	Condition for detecting link up status of monitored ports.

Interrupt Configuration

The first R_RMAC_Open function call sets GWDI interrupts. The user could provide callback function which would be invoked when GWDI interrupt handler has been completed. The callback arguments will contain information about a channel number, the event code and a pointer to the user defined context.

Callback Configuration

The user could provide callback function which would be invoked when either a magic packet or a link signal change is detected. When the callback function is called, a variable in which the channel number for which the detection occurred and a constant shown in Table 2.4 are stored is passed as an argument. If the value of this argument is to be used outside the callback function, its value should be copied into, for example, a global variable.

Clock Configuration

The ESWM peripheral uses ICLK, PCLKA, ESWCLK and ESWPHYCLK as clocks. These clocks must be set to frequencies within the ranges shown in the following table.

PHY speed [Mbps]	ICLK [MHz]	PCLKA [MHz]	ESWCLK [MHz]	ESWPHYCLK [MHz]
10/100	50 to 250	up to 125	50 to 250	Not required
1000	150 to 250	up to 125	150 to 250	500

Note: 1. Clock restrictions are as follow: ICLK × 1.5 => ESWCLK, ESWCLK > PCLKA and ICLK > PCLKA.; 2. When using a products in the HLQFP176 package, set ESWCLK to 125 MHz or less.

Pin Configuration

To use the RMAC module, input/output signals of the peripheral function have to be allocated to pins with the multi-function pin controller (MPC). Please perform the pin setting before calling the R_RMAC_Open function.

Usage Notes

Ethernet Frame Format

The RMAC module supports the Ethernet II/IEEE 802.3 frame format.

Frame Format for Data Transmission and Reception

Frame Format Image

The preamble and SFD signal the start of an Ethernet frame. The FCS contains the CRC of the Ethernet frame and is calculated on the transmitting side. When data is received the CRC value of the frame is calculated in hardware, and the Ethernet frame is discarded if the values do not match. When the hardware determines that the data is normal, the valid range of receive data is: (transmission destination address) + (transmission source address) + (length/type) + (data).

PAUSE Frame Format

Pause Frame Format Image

The transmission destination address is specified as 01:80:C2:00:00:01 (a multicast address reserved for PAUSE frames). At the start of the payload the length/type is specified as 0x8808 and the operation code as 0x0001. The pause duration in the payload is specified by the value of the automatic PAUSE (AP) bits in the automatic PAUSE frame setting register (APR), or the manual PAUSE time setting (MP) bits in the manual PAUSE frame setting register (MPR).

Magic Packet Frame Format

Magic Packet Frame Format Image

In a Magic Packet, the value FF:FF:FF:FF:FF:FF followed by the transmission destination address repeated 16 times is inserted somewhere in the Ethernet frame data.

How to Use Transparent Bridge

Transparent Bridge is a Layer 2 bridging method that forwards, learns, and filters frames based on MAC addresses.

The r_rmac driver allows a single r_rmac instance to manage multiple ports, enabling multi-port transmission and reception operations similar to Transparent Bridge.

For an implementation example, refer to Transparent Bridge Example

Configure Settings in FSP Configurator

Configure the following settings in the rmac stack.

Property	Value	Description
Forwarding -> Transmission descriptor format Transmission ethernet descriptor	Transmission ethernet descriptor	Configures transmission to follow forwarding rules.
Forwarding -> Port-based forwarding for reception Enabled	Enabled	Enables reception on multiple ports.
Link -> Link monitored ports	All ports used for the transparent bridge	Specifies the ports to monitor for link detection.
Link -> Link Detection Any monitored port	Any monitored port	Selects the port used for link monitoring.

Configure Forwarding Rules in User Code

Use the ConfigureTable API to initialize the forwarding table as shown in the table below.

The array port_cfg_list[] must be configured according to the number of ports.

Member	Value	Description
unsecure_entry_maximum_num	At least 1	The number of forwarding rule entries.
port_cfg_list[].mac_table_enable	true	Enables MAC address-based forwarding for each port.
port_cfg_list[].mac_address_search	LAYER3_SWITCH_MAC_ADDRESS_SEARCH_DESTINATION	Uses the destination MAC address in forwarding rules.
port_cfg_list[].mac_hardware_learning_enable	true	Enables automatic learning of MAC addresses from received frames.

To allow the CPU to receive frames from a specific MAC address, add a forwarding rule with the following configuration using the AddTableEntry API.

Member	Value	Description
target_frame.entry_type	LAYER3_SWITCH_TABLE_ENTRY_TYPE_MAC	Performs forwarding based on a MAC address.
target_frame.p_destination_mac_address	MAC address set in rmac	Destination MAC address used to forward frames to the CPU.
entry_cfg.entry_enable	true	Must be enabled to register the entry.
entry_cfg.destination_ports	(1 << BSP_FEATURE_ESWM_GWCA_PORT)	Specifies the CPU as the forwarding destination.
entry_cfg.source_ports	All ports used for the transparent bridge.	Specifies the ports from which received frames are forwarded.
entry_cfg.destination_queue_index	rmac `.p_rx_queue_list[running_queue_index].index`	Synchronizes with the receive queue managed by the r_rmac driver.(*1)

(*1)Because the receive queue used by the rmac driver changes dynamically, the forwarding rule settings must be updated accordingly.

Forwarding rules can be updated by calling the AddTableEntry API again in a callback of r_rmac or a higher-level module when an RX event occurs.

Examples

ETHER Basic Example

This is a basic example of minimal use of the ETHER in an application.

Note: In this example zero-copy mode is disabled and there are no restrictions on buffer alignment.

#define RMAC_EXAMPLE_MAXIMUM_ETHERNET_FRAME_SIZE     (1514)
#define RMAC_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE    (60)
#define RMAC_EXAMPLE_SOURCE_MAC_ADDRESS              0x74, 0x90, 0x50, 0x00, 0x79, 0x01
#define RMAC_EXAMPLE_DESTINATION_MAC_ADDRESS         0x74, 0x90, 0x50, 0x00, 0x79, 0x02
#define RMAC_EXAMPLE_FRAME_TYPE                      0x00, 0x2E
#define RMAC_EXAMPLE_PAYLOAD                         0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, \
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                  \
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                  \
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                  \
/* Receive data buffer */
static uint8_t gp_read_buffer[RMAC_EXAMPLE_MAXIMUM_ETHERNET_FRAME_SIZE] = {0};
/* Transmit data buffer */
static uint8_t gp_send_data[RMAC_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE] =
{
    RMAC_EXAMPLE_DESTINATION_MAC_ADDRESS, /* Destination MAC address */
    RMAC_EXAMPLE_SOURCE_MAC_ADDRESS,      /* Source MAC address */
    RMAC_EXAMPLE_FRAME_TYPE,              /* Type field */
    RMAC_EXAMPLE_PAYLOAD                  /* Payload value (46byte) */
};
void rmac_basic_example (void)
{
    fsp_err_t err            = FSP_SUCCESS;
    uint32_t  read_data_size = 0;
    /* Open the rmac instance with initial configuration. */
    err = R_RMAC_Open(&g_ether0_ctrl, &g_ether0_cfg);
    /* Handle any errors. This function should be defined by the user. */
    assert(FSP_SUCCESS == err);
    do
    {
        /* When the Ethernet link status read from the PHY-LSI Basic Status register is link-up,
         * Initializes the module and make auto negotiation. */
        err = R_RMAC_LinkProcess(&g_ether0_ctrl);
    } while (FSP_SUCCESS != err);
    /* Transmission is non-blocking. */
    /* User data copy to internal buffer and is transferred by DMA in the background. */
    err = R_RMAC_Write(&g_ether0_ctrl, (void *) gp_send_data, sizeof(gp_send_data));
    assert(FSP_SUCCESS == err);
    /* Received data copy to user buffer from internal buffer. */
    err = R_RMAC_Read(&g_ether0_ctrl, (void *) gp_read_buffer, &read_data_size);
    assert(FSP_SUCCESS == err);
    /* Disable transmission and receive function and close the rmac instance. */
    R_RMAC_Close(&g_ether0_ctrl);
}

Timestamp Example

This is a example of getting transmission and reception timestamps.

void rmac_timestamp_example (void)
{
    fsp_err_t err            = FSP_SUCCESS;
    uint32_t  read_data_size = 0;
    rmac_timestamp_t rx_timestamp;
    rmac_timestamp_t tx_timestamp;
    rmac_write_cfg_t write_cfg = {.tx_timestamp_enable = 1};
    /* Open the rmac instance with initial configuration. */
    err = R_RMAC_Open(&g_ether0_ctrl, &g_ether0_cfg);
    /* Handle any errors. This function should be defined by the user. */
    assert(FSP_SUCCESS == err);
    do
    {
        /* When the Ethernet link status read from the PHY-LSI Basic Status register is link-up,
         * Initializes the module and make auto negotiation. */
        err = R_RMAC_LinkProcess(&g_ether0_ctrl);
    } while (FSP_SUCCESS != err);
    /* Set write configuration. */
    err = R_RMAC_SetWriteConfig(&g_ether0_ctrl, &write_cfg);
    assert(FSP_SUCCESS == err);
    /* Transmission is non-blocking. */
    /* User data copy to internal buffer and is transferred by DMA in the background. */
    err = R_RMAC_Write(&g_ether0_ctrl, (void *) gp_send_data, sizeof(gp_send_data));
    assert(FSP_SUCCESS == err);
    /* Get TX timestamp value. */
    err = R_RMAC_GetTxTimestamp(&g_ether0_ctrl, &tx_timestamp);
    assert(FSP_SUCCESS == err);
    /* Get RX timestamp value. */
    err = R_RMAC_GetRxTimestamp(&g_ether0_ctrl, &rx_timestamp);
    assert(FSP_SUCCESS == err);
    /* Received data copy to user buffer from internal buffer. */
    err = R_RMAC_Read(&g_ether0_ctrl, (void *) gp_read_buffer, &read_data_size);
    assert(FSP_SUCCESS == err);
    /* Disable transmission and receive function and close the rmac instance. */
    R_RMAC_Close(&g_ether0_ctrl);
}

Transparent Bridge Example

This is a example of Transparent Bridge.

#define RMAC_EXAMPLE_UNSECURE_ENTRY_MAX_NUM    7
layer3_switch_table_entry_t g_layer3_switch_example_entry;
layer3_switch_table_cfg_t   g_layer3_switch_example_table_cfg;
void layer3_example_initialize_forwarding_table (void)
{
    fsp_err_t err;
    /* Setting Layer3 Table Config */
    g_layer3_switch_example_table_cfg.unsecure_entry_maximum_num =
        RMAC_EXAMPLE_UNSECURE_ENTRY_MAX_NUM;
    g_layer3_switch_example_table_cfg.port_cfg_list[0].mac_table_enable = true;
    g_layer3_switch_example_table_cfg.port_cfg_list[1].mac_table_enable = true;
    g_layer3_switch_example_table_cfg.port_cfg_list[BSP_FEATURE_ESWM_GWCA_PORT].mac_table_enable = true;
    g_layer3_switch_example_table_cfg.port_cfg_list[0].mac_address_search =
        LAYER3_SWITCH_MAC_ADDRESS_SEARCH_DESTINATION;
    g_layer3_switch_example_table_cfg.port_cfg_list[1].mac_address_search =
        LAYER3_SWITCH_MAC_ADDRESS_SEARCH_DESTINATION;
    g_layer3_switch_example_table_cfg.port_cfg_list[BSP_FEATURE_ESWM_GWCA_PORT].mac_address_search =
        LAYER3_SWITCH_MAC_ADDRESS_SEARCH_DESTINATION;
    g_layer3_switch_example_table_cfg.port_cfg_list[0].mac_hardware_learning_enable = true;
    g_layer3_switch_example_table_cfg.port_cfg_list[1].mac_hardware_learning_enable = true;
    err = R_LAYER3_SWITCH_ConfigureTable(&g_ether_switch0_ctrl, &g_layer3_switch_example_table_cfg);
    assert(FSP_SUCCESS == err);
}
void layer3_example_update_table (void)
{
    fsp_err_t err;
    /* Setting Layer3 Entry. */
    g_layer3_switch_example_entry.target_frame.entry_type                = LAYER3_SWITCH_TABLE_ENTRY_TYPE_MAC;
    g_layer3_switch_example_entry.target_frame.p_destination_mac_address = g_ether0_mac_address;
    /* Set forwarding frame entry_cfg. */
    g_layer3_switch_example_entry.entry_cfg.entry_enable            = true;
    g_layer3_switch_example_entry.entry_cfg.security_enable         = true;
    g_layer3_switch_example_entry.entry_cfg.destination_ports       = (1 << BSP_FEATURE_ESWM_GWCA_PORT);
    g_layer3_switch_example_entry.entry_cfg.source_ports            = (1 << 0) | (1 << 1);
    g_layer3_switch_example_entry.entry_cfg.destination_queue_index =
        g_ether0_extended_cfg.p_rx_queue_list[g_ether0_ctrl.rx_running_queue_index].index;
    err = R_LAYER3_SWITCH_AddTableEntry(&g_ether_switch0_ctrl,
                                        &g_layer3_switch_example_entry.target_frame,
                                        &g_layer3_switch_example_entry.entry_cfg);
    assert(FSP_SUCCESS == err);
}
void layer3_example_update_table_callback (ether_callback_args_t * p_args)
{
    switch (p_args->event)
    {
        case ETHER_EVENT_RX_COMPLETE:
        case ETHER_EVENT_RX_MESSAGE_LOST:
        {
            /* Update table to synchronize the reception queue with the r_rmac driver. */
            layer3_example_update_table();
            break;
        }
        default:
        {
            break;
        }
    }
}

Function Documentation

◆ R_RMAC_Open()

fsp_err_t R_RMAC_Open	(	ether_ctrl_t *const	p_ctrl,
		ether_cfg_t const *const	p_cfg
	)

After RMAC, Switch and PHY-LSI are reset in software, an auto negotiation of PHY-LSI is begun. Afterwards, the link signal change interrupt is permitted. Implements ether_api_t::open.

Initializes the ether module and applies configurations. Implements ether_api_t::open.

Return values

FSP_SUCCESS	Channel opened successfully.
FSP_ERR_ASSERTION	Pointer to ETHER control block or configuration structure is NULL.
FSP_ERR_ALREADY_OPEN	Control block has already been opened or channel is being used by another instance. Call close() then open() to reconfigure.
FSP_ERR_ETHER_ERROR_PHY_COMMUNICATION	Initialization of PHY-LSI failed.
FSP_ERR_INVALID_CHANNEL	Invalid channel number is given.
FSP_ERR_INVALID_POINTER	Pointer to extend config structure or MAC address is NULL.
FSP_ERR_INVALID_ARGUMENT	Interrupt is not enabled.
FSP_ERR_ETHER_PHY_ERROR_LINK	Initialization of PHY-LSI failed.

◆ R_RMAC_Close()

fsp_err_t R_RMAC_Close ( ether_ctrl_t *const p_ctrl )

Disables interrupts. Removes power and releases hardware lock. Implements ether_api_t::close.

Return values

FSP_SUCCESS	Channel successfully closed.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened

◆ R_RMAC_BufferRelease()

fsp_err_t R_RMAC_BufferRelease ( ether_ctrl_t *const p_ctrl )

Move to the next buffer in the receive buffer list. Implements ether_api_t::bufferRelease.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	Pointer to ETHER control block or internal buffers is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened
FSP_ERR_ETHER_ERROR_LINK	Auto-negotiation is not completed, and reception is not enabled.
FSP_ERR_BUFFER_EMPTY	There is no available internal RX buffer.

◆ R_RMAC_RxBufferUpdate()

fsp_err_t R_RMAC_RxBufferUpdate	(	ether_ctrl_t *const	p_ctrl,
		void *const	p_buffer
	)

Change the buffer pointer of the current rx buffer descriptor. Implements ether_api_t::rxBufferUpdate.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	A pointer argument is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_INVALID_POINTER	The pointer of buffer is NULL or not aligned on a 32-bit boundary.
FSP_ERR_INVALID_MODE	Driver is configured to non zero copy mode.
FSP_ERR_BUFFER_EMPTY	There is no available internal RX buffer.

◆ R_RMAC_LinkProcess()

fsp_err_t R_RMAC_LinkProcess ( ether_ctrl_t *const p_ctrl )

The Link up processing, the Link down processing, and the magic packet detection processing are executed. Implements ether_api_t::linkProcess.

Return values

FSP_SUCCESS	Link is up.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_ETHER_ERROR_LINK	Link is down.
FSP_ERR_ETHER_ERROR_PHY_COMMUNICATION	When reopening the PHY interface initialization of the PHY-LSI failed.
FSP_ERR_ALREADY_OPEN	When reopening the PHY interface it was already opened.
FSP_ERR_INVALID_CHANNEL	When reopening the PHY interface an invalid channel was passed.
FSP_ERR_INVALID_POINTER	When reopening the PHY interface the MAC address pointer was NULL.
FSP_ERR_INVALID_ARGUMENT	When reopening the PHY interface the interrupt was not enabled.
FSP_ERR_ETHER_PHY_ERROR_LINK	Initialization of the PHY-LSI failed.

◆ R_RMAC_WakeOnLANEnable()

fsp_err_t R_RMAC_WakeOnLANEnable ( ether_ctrl_t *const p_ctrl )

The setting of RMAC is changed from normal sending and receiving mode to magic packet detection mode. Implements ether_api_t::wakeOnLANEnable.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_ETHER_ERROR_LINK	Auto-negotiation is not completed, and reception is not enabled.
FSP_ERR_ETHER_PHY_ERROR_LINK	Initialization of PHY-LSI failed.

◆ R_RMAC_Read()

fsp_err_t R_RMAC_Read	(	ether_ctrl_t *const	p_ctrl,
		void *const	p_buffer,
		uint32_t *const	length_bytes
	)

Receive Ethernet frame. Receives data to the location specified by the pointer to the receive buffer. In zero copy mode, the address of the receive buffer is returned. In non zero copy mode, the received data in the internal buffer is copied to the pointer passed by the argument. Implements ether_api_t::read.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_ETHER_ERROR_NO_DATA	There is no data in receive buffer.
FSP_ERR_ETHER_ERROR_LINK	Auto-negotiation is not completed, and reception is not enabled.
FSP_ERR_ETHER_ERROR_FILTERING	Multicast Frame filter is enable, and Multicast Address Frame is received.
FSP_ERR_INVALID_POINTER	Value of the pointer is NULL.
FSP_ERR_BUFFER_EMPTY	There is no available internal RX buffer.
FSP_ERR_INVALID_SIZE	The buffer size is smaller than ether_cfg_t::ether_buffer_size.

◆ R_RMAC_Write()

fsp_err_t R_RMAC_Write	(	ether_ctrl_t *const	p_ctrl,
		void *const	p_buffer,
		uint32_t const	frame_length
	)

Transmit Ethernet frame. Transmits data from the location specified by the pointer to the transmit buffer, with the data size equal to the specified frame length. In the non zero copy mode, transmits data after being copied to the internal buffer. Implements ether_api_t::write.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_ETHER_ERROR_LINK	Auto-negotiation is not completed, and reception is not enabled.
FSP_ERR_ETHER_ERROR_TRANSMIT_BUFFER_FULL	Transmit buffer is not empty.
FSP_ERR_INVALID_POINTER	Value of the pointer is NULL.
FSP_ERR_INVALID_ARGUMENT	Value of the send frame size is out of range.
FSP_ERR_BUFFER_EMPTY	There is no available internal TX buffer.

◆ R_RMAC_TxStatusGet()

fsp_err_t R_RMAC_TxStatusGet	(	ether_ctrl_t *const	p_ctrl,
		void *const	p_buffer_address
	)

Provides status of Ethernet driver in the user provided pointer. Implements ether_api_t::txStatusGet.

Return values

FSP_SUCCESS	Transmit buffer address is stored in provided p_buffer_address.
FSP_ERR_ASSERTION	Pointer to ETHER control block is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_INVALID_POINTER	p_status is NULL.
FSP_ERR_NOT_FOUND	Transmit buffer address has been overwritten in transmit descriptor.

◆ R_RMAC_CallbackSet()

fsp_err_t R_RMAC_CallbackSet	(	ether_ctrl_t *const	p_api_ctrl,
		void()(ether_callback_args_t )	p_callback,
		void *const	p_context,
		ether_callback_args_t *const	p_callback_memory
	)

Updates the user callback with the option to provide memory for the callback argument structure. Implements ether_api_t::callbackSet.

Return values

FSP_SUCCESS	Callback updated successfully.
FSP_ERR_ASSERTION	A required pointer is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.
FSP_ERR_NO_CALLBACK_MEMORY	p_callback is non-secure and p_callback_memory is either secure or NULL.

◆ R_RMAC_SetWriteConfig()

fsp_err_t R_RMAC_SetWriteConfig	(	ether_ctrl_t *const	p_ctrl,
		rmac_write_cfg_t *const	p_write_cfg
	)

Set configuration for tx frame. This API must call before ether_api_t::write.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	A pointer argument is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.

◆ R_RMAC_GetTxTimestamp()

fsp_err_t R_RMAC_GetTxTimestamp	(	ether_ctrl_t *const	p_ctrl,
		rmac_timestamp_t *const	p_timestamp
	)

Get timestamp of transmitted frame. This API must call after ether_api_t::write.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	A pointer argument is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.

◆ R_RMAC_GetRxTimestamp()

fsp_err_t R_RMAC_GetRxTimestamp	(	ether_ctrl_t *const	p_ctrl,
		rmac_timestamp_t *const	p_timestamp
	)

Get timestamp of received frame. This API must call before ether_api_t::read.

Return values

FSP_SUCCESS	Processing completed successfully.
FSP_ERR_ASSERTION	A pointer argument is NULL.
FSP_ERR_NOT_OPEN	The control block has not been opened.

Functions

Detailed Description

Overview

Features

Supported Devices

Configuration

Build Time Configurations for r_rmac

Configurations for Networking > Ethernet MAC (r_rmac)

Interrupt Configuration

Callback Configuration

Clock Configuration

Pin Configuration

Usage Notes

Ethernet Frame Format

Frame Format for Data Transmission and Reception

PAUSE Frame Format

Magic Packet Frame Format

How to Use Transparent Bridge

Configure Settings in FSP Configurator

Configure Forwarding Rules in User Code

Examples

ETHER Basic Example

Timestamp Example

Transparent Bridge Example

Function Documentation

◆ R_RMAC_Open()

◆ R_RMAC_Close()

◆ R_RMAC_BufferRelease()

◆ R_RMAC_RxBufferUpdate()

◆ R_RMAC_LinkProcess()

◆ R_RMAC_WakeOnLANEnable()

◆ R_RMAC_Read()

◆ R_RMAC_Write()

◆ R_RMAC_TxStatusGet()

◆ R_RMAC_CallbackSet()

◆ R_RMAC_SetWriteConfig()

◆ R_RMAC_GetTxTimestamp()

◆ R_RMAC_GetRxTimestamp()
