Layer3 Ethernet Switch (r_layer3_switch)
Modules » Networking

Functions

fsp_err_t R_LAYER3_SWITCH_Open (ether_switch_ctrl_t *const p_ctrl, ether_switch_cfg_t const *const p_cfg)

fsp_err_t R_LAYER3_SWITCH_Close (ether_switch_ctrl_t *const p_ctrl)
 Disables interrupts and stop module. Implements ether_switch_api_t::close. More...

fsp_err_t R_LAYER3_SWITCH_CreateDescriptorQueue (ether_switch_ctrl_t *const p_ctrl, uint32_t *const p_queue_index, const layer3_switch_descriptor_queue_cfg_t *const p_queue_cfg)
 Create a new descriptor queue and set it to LINKFIX table. This function must be called before calling R_LAYER3_SWITCH_SetDescriptor and R_LAYER3_SWITCH_GetDescriptor. More...

fsp_err_t R_LAYER3_SWITCH_SetDescriptor (ether_switch_ctrl_t *const p_ctrl, uint32_t queue_index, layer3_switch_descriptor_t const *const p_descriptor)
 Set descriptor data to a target descriptor. More...

fsp_err_t R_LAYER3_SWITCH_GetDescriptor (ether_switch_ctrl_t *const p_ctrl, uint32_t queue_index, layer3_switch_descriptor_t *const p_descriptor)
 Get descriptor data from a target descriptor. More...

fsp_err_t R_LAYER3_SWITCH_StartDescriptorQueue (ether_switch_ctrl_t *const p_ctrl, uint32_t queue_index)
 Reload and enable a descriptor queue. In a TX descriptor queue, the queue start transmission. In a RX descriptor queue, the queue start reception. More...

fsp_err_t R_LAYER3_SWITCH_CallbackSet (ether_switch_ctrl_t *const p_ctrl, void(*p_callback)(ether_switch_callback_args_t *), void *const p_context, ether_switch_callback_args_t *const p_callback_memory)

fsp_err_t R_LAYER3_SWITCH_ConfigurePort (ether_switch_ctrl_t *const p_ctrl, uint8_t port, layer3_switch_port_cfg_t *p_port_cfg)

fsp_err_t R_LAYER3_SWITCH_AddTableEntry (ether_switch_ctrl_t *const p_ctrl, layer3_switch_frame_filter_t const *const p_target_frame, layer3_switch_table_entry_cfg_t const *const p_entry_cfg)

fsp_err_t R_LAYER3_SWITCH_SearchTableEntry (ether_switch_ctrl_t *const p_ctrl, layer3_switch_frame_filter_t const *const p_target_frame, layer3_switch_table_entry_cfg_t *const p_entry_cfg)

fsp_err_t R_LAYER3_SWITCH_ConfigureTable (ether_switch_ctrl_t *const p_ctrl, layer3_switch_table_cfg_t const *const p_table_cfg)

fsp_err_t R_LAYER3_SWITCH_GetTable (ether_switch_ctrl_t *const p_ctrl, layer3_switch_table_t *const p_table)

fsp_err_t R_LAYER3_SWITCH_ConfigureTAS (ether_switch_ctrl_t *const p_ctrl, uint8_t port, layer3_switch_tas_cfg_t *p_tas_cfg)

fsp_err_t R_LAYER3_SWITCH_EnableTAS (ether_switch_ctrl_t *const p_ctrl, uint8_t port)

fsp_err_t R_LAYER3_SWITCH_PsfpClearErrorStatus (ether_switch_ctrl_t *const p_ctrl, layer3_switch_psfp_error_status_bitmask_t bitmasks)


Detailed Description

The LAYER3 SWITCH module (r_layer3_switch) provides an API for standard Ethernet communications applications that use the ESWM peripheral. It implements the Ethernet Switch Interface.

Overview

This module performs Ethernet frame transmission and reception using Ethernet Switch Module.

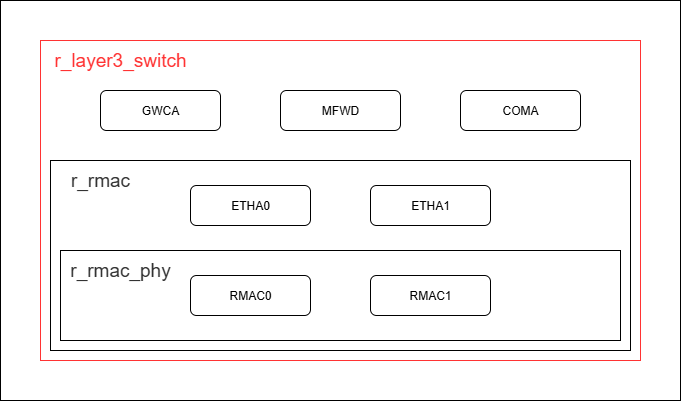

The following figure shows which IPs are used by the r_layer3_switch module.

ESWM block diagram

Features

The layer3 switch module supports the following features:

Configuration

Build Time Configurations for r_layer3_switch

The following build time configurations are defined in fsp_cfg/r_layer3_switch_cfg.h:

ConfigurationOptionsDefaultDescription
Parameter Checking
  • Default (BSP)
  • Enabled
  • Disabled
Default (BSP) If selected code for parameter checking is included in the build.
Available queue numValue must be an integer between 1 and 644 available queue num.
gPTP enable
  • Enabled
  • Disabled
Enabled Select whether or not to use gPTP function.
Time Aware Shaper
  • Enabled
  • Disabled
Disabled Select whether or not to use the Time Aware Shaper function.

Configurations for Networking > Switch (r_layer3_switch)

This module can be added to the Stacks tab via New Stack > Networking > Switch (r_layer3_switch).

ConfigurationOptionsDefaultDescription
Interrupts > Interrupt priorityMCU Specific OptionsSelect the layer3_switch interrupt priority.
Interrupts > ETHA0 error interrupt priorityMCU Specific OptionsSelect the layer3_switch etha0 interrupt priority.
Interrupts > ETHA1 error interrupt priorityMCU Specific OptionsSelect the layer3_switch etha1 interrupt priority.
Ports > Port 0 > IPV queue depth > Queue 0Value must be an integer more than 164 queue0 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 1Value must be an integer more than 164 queue1 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 2Value must be an integer more than 164 queue2 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 3Value must be an integer more than 164 queue3 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 4Value must be an integer more than 164 queue4 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 5Value must be an integer more than 164 queue5 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 6Value must be an integer more than 164 queue6 dept of port 0.
Ports > Port 0 > IPV queue depth > Queue 7Value must be an integer more than 164 queue7 dept of port 0.
Ports > Port 0 > ForwardingMCU Specific OptionsDestination ports for port 0 forwarding
Ports > Port 0 > IPV queues for preemptable frames
  • Queue 0
  • Queue 1
  • Queue 2
  • Queue 3
  • Queue 4
  • Queue 5
  • Queue 6
  • Queue 7
Select IPV queues that send preemptable frames from port 0.
Ports > Port 0 > Minimum fragment size of preemptable frames
  • 64 bytes
  • 128 bytes
  • 192 bytes
  • 256 bytes
64 bytes Select minimum fragment size of preemptable frames that send from port 0.
Ports > Port 0 > MAC addressMust be a valid MAC address00:11:22:33:44:55 MAC address of port 0.
Ports > Port 0 > CallbackName must be a valid C symbolNULL Callback provided when an ISR occurs for port0.
Ports > Port 0 > ContextName must be a valid C symbolNULL Placeholder for user data. Passed to the user callback in ether_switch_callback_args_t for port0.
Ports > Port 0 > GPTP timer number
  • Timer 0
  • Timer 1
Timer 0 GPTP timer number of port 0.
Ports > Port 1 > IPV queue depth > Queue 0Value must be an integer more than 164 queue0 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 1Value must be an integer more than 164 queue1 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 2Value must be an integer more than 164 queue2 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 3Value must be an integer more than 164 queue3 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 4Value must be an integer more than 164 queue4 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 5Value must be an integer more than 164 queue5 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 6Value must be an integer more than 164 queue6 dept of port 1.
Ports > Port 1 > IPV queue depth > Queue 7Value must be an integer more than 164 queue7 dept of port 1.
Ports > Port 1 > ForwardingMCU Specific OptionsDestination ports for port 1 forwarding
Ports > Port 1 > IPV queues for preemptable frames
  • Queue 0
  • Queue 1
  • Queue 2
  • Queue 3
  • Queue 4
  • Queue 5
  • Queue 6
  • Queue 7
Select IPV queues that send preemptable frames from port 1.
Ports > Port 1 > Minimum fragment size of preemptable frames
  • 64 bytes
  • 128 bytes
  • 192 bytes
  • 256 bytes
64 bytes Select minimum fragment size of preemptable frames that send from port 1.
Ports > Port 1 > MAC addressMust be a valid MAC address00:11:22:33:44:55 MAC address of port 1.
Ports > Port 1 > CallbackName must be a valid C symbolNULL Callback provided when an ISR occurs for port1.
Ports > Port 1 > ContextName must be a valid C symbolNULL Placeholder for user data. Passed to the user callback in ether_switch_callback_args_t for port1.
Ports > Port 1 > GPTP timer number
  • Timer 0
  • Timer 1
Timer 1 GPTP timer number of port 1.
Ports > CPU > Forwarding
  • Port 0
  • Port 1
Destination ports for CPU forwarding
CBS > Port 0 Band width ( % ) > Queue 0Value must be an integer between 0 and 1000 queue0 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 1Value must be an integer between 0 and 1000 queue1 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 2Value must be an integer between 0 and 1000 queue2 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 3Value must be an integer between 0 and 1000 queue3 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 4Value must be an integer between 0 and 1000 queue4 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 5Value must be an integer between 0 and 1000 queue5 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 6Value must be an integer between 0 and 1000 queue6 Band width of port 0.
CBS > Port 0 Band width ( % ) > Queue 7Value must be an integer between 0 and 1000 queue7 Band width of port 0.
CBS > Port 1 Band width ( % ) > Queue 0Value must be an integer between 0 and 1000 queue0 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 1Value must be an integer between 0 and 1000 queue1 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 2Value must be an integer between 0 and 1000 queue2 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 3Value must be an integer between 0 and 1000 queue3 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 4Value must be an integer between 0 and 1000 queue4 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 5Value must be an integer between 0 and 1000 queue5 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 6Value must be an integer between 0 and 1000 queue6 Band width of port 1.
CBS > Port 1 Band width ( % ) > Queue 7Value must be an integer between 0 and 1000 queue7 Band width of port 1.
CBS > Port 0 Maximum burst frame number > Queue 0Value must be an integer between 0 and 2550 queue0 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 1Value must be an integer between 0 and 2550 queue1 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 2Value must be an integer between 0 and 2550 queue2 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 3Value must be an integer between 0 and 2550 queue3 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 4Value must be an integer between 0 and 2550 queue4 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 5Value must be an integer between 0 and 2550 queue5 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 6Value must be an integer between 0 and 2550 queue6 maximum burst frame number of port 0.
CBS > Port 0 Maximum burst frame number > Queue 7Value must be an integer between 0 and 2550 queue7 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 0Value must be an integer between 0 and 2550 queue0 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 1Value must be an integer between 0 and 2550 queue1 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 2Value must be an integer between 0 and 2550 queue2 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 3Value must be an integer between 0 and 2550 queue3 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 4Value must be an integer between 0 and 2550 queue4 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 5Value must be an integer between 0 and 2550 queue5 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 6Value must be an integer between 0 and 2550 queue6 maximum burst frame number of port 0.
CBS > Port 1 Maximum burst frame number > Queue 7Value must be an integer between 0 and 2550 queue7 maximum burst frame number of port 0.
NameName must be a valid C symbolg_layer3_switch0 Module name.
Channel00 Select the layer3 switch controller channel number.
ContextName must be a valid C symbolNULL Placeholder for user data. Passed to the user callback in ether_switch_callback_args_t.
CallbackName must be a valid C symbolNULL Callback provided when an ISR occurs
Number of Layer 3 routing entriesValue must be an integer between 1 and 25610 Maximum number of Layer 3 routing entries.

Usage Notes

Time-Sensitive Network (TSN)

Credit Based Shaper [802.1Qav]

Credit Based Shaper (CBS) is a standard defined in IEEE 802.1Qav that limits the throughput of Ethernet traffic. The figure below illustrates the operation of CBS when the bandwidth is set to 40Mbps. When the transmission throughput exceeds the bandwidth configured by CBS, frame transmission is restricted. The restricted frames are buffered in the queue and transmitted with delay.

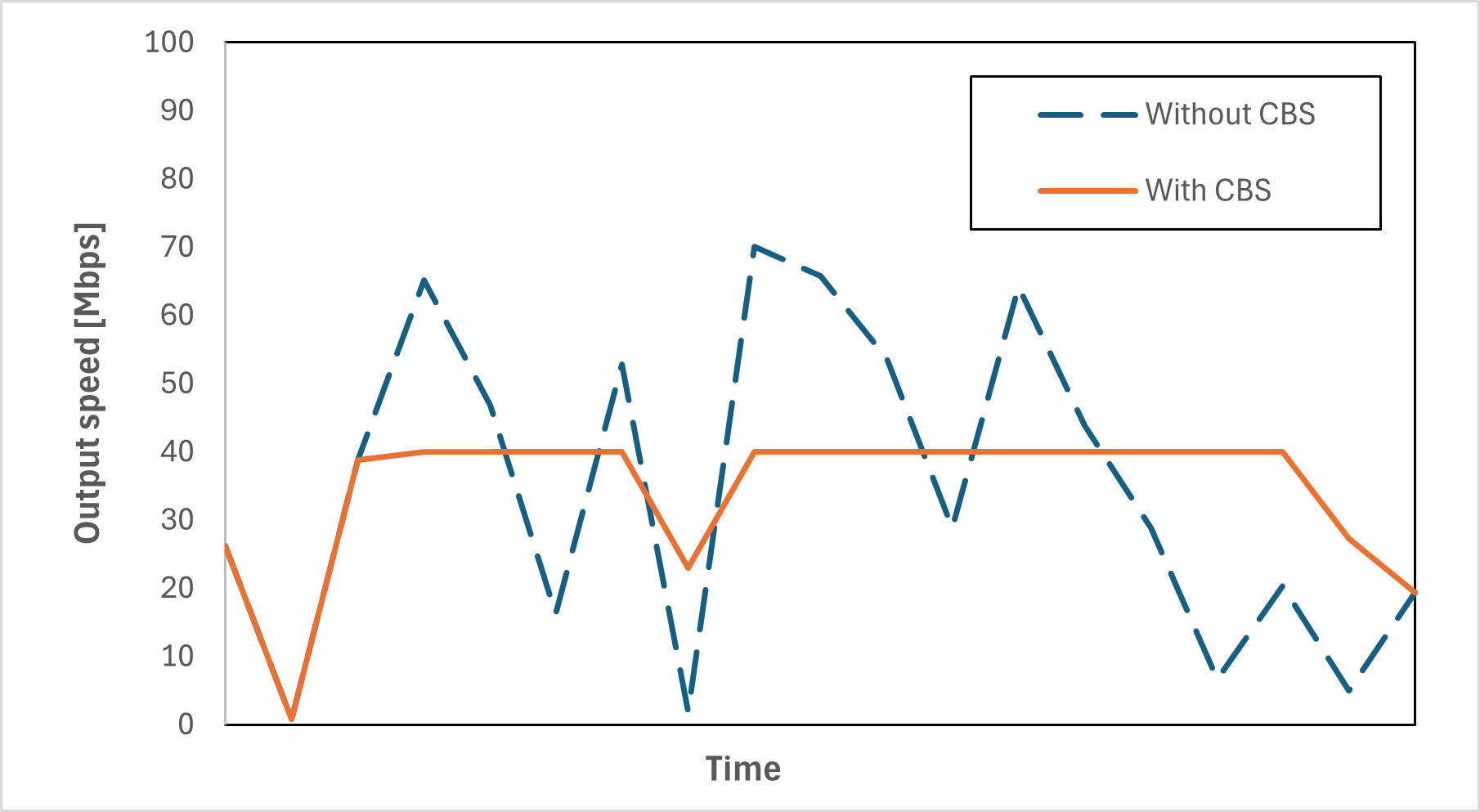

CBS operation image

In the r_layer3_switch module, CBS bandwidth can be configured for each Internal Priority Value (IPV) queue per transmission port. There are 8 IPV queues available for each port. On transmission ports where CBS is enabled, the throughput is limited to the configured bandwidth. CBS can be configured through stack properties or the ConfigurePort() API.

Note
The maximum number of frames that can be buffered by CBS is limited to the depth of each IPV queue. If many frames are buffered in high-priority queues, the common memory pool may be depleted, potentially limiting transmission from other queues.

Time-Aware Shaper [802.1Qbv]

Time-Aware Shaper (TAS) is a standard defined in IEEE 802.1Qbv that limits Ethernet traffic by controlling the time window when frames are transmitted. TAS controls transmission by changing gate states. Frames are transmitted while the gate is opened and when the gate is closed, frames cannot be transmitted and are delayed until the next open state. By opening each gate at different timings, it is possible to prevent frames of specific priorities from monopolizing the bandwidth. The figure below illustrates the operation of TAS. In this image, the gate cycle time is set to 10ms, Gate 0 is opened for 2.5 ms and closed for 7.5 ms, Gate 1 is closed for 1.0 + 5.0 ms and open for 4.0 ms.

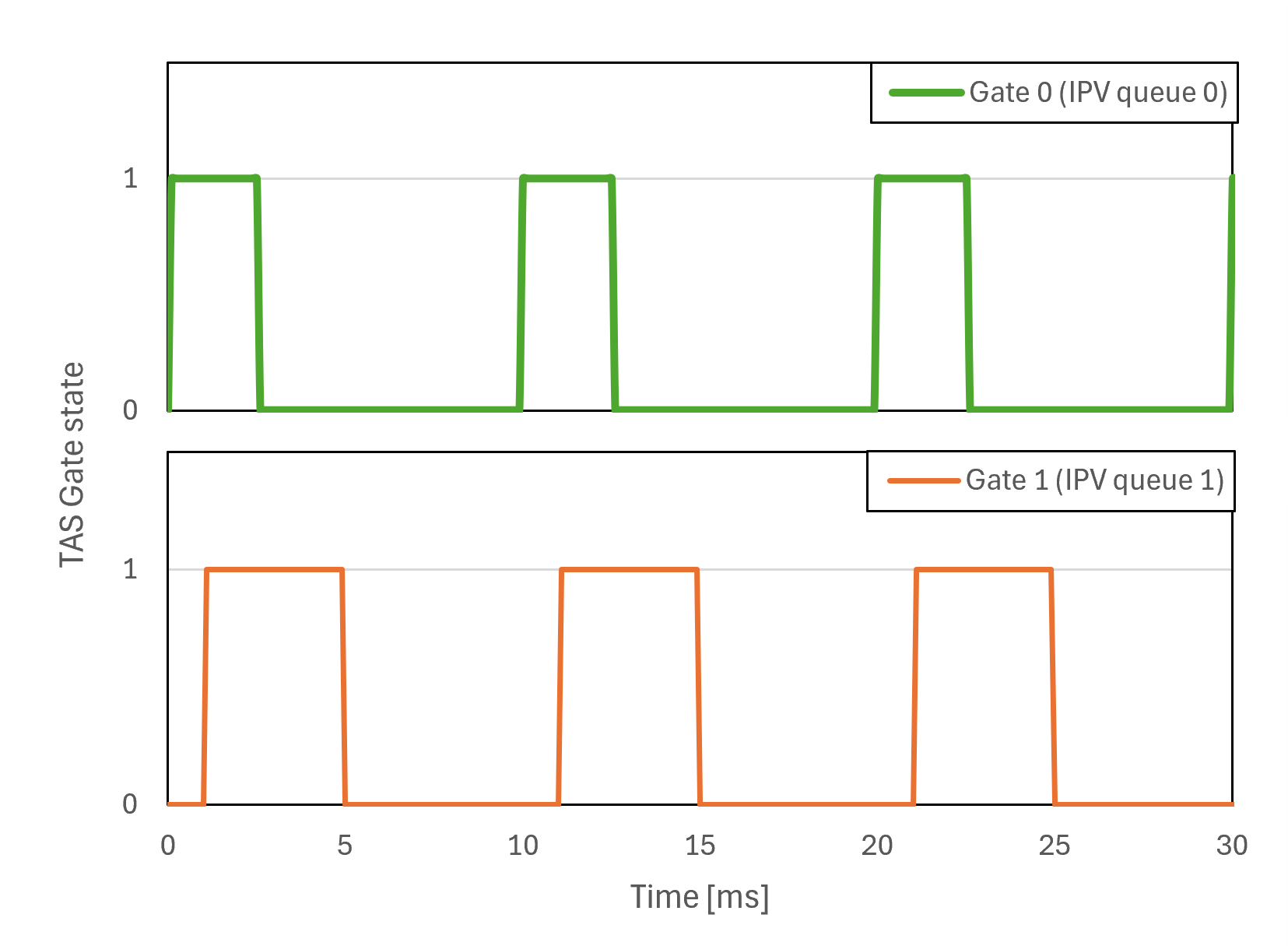

TAS operation image

In the r_layer3_switch module, TAS gates can be configured for each IPV queue of the transmission ports. Each gate learns entries that represent windows. An entry contains the window time and state. TAS feature is configured using the ConfigureTAS() API, and enabled using the EnableTAS() API.

Note
This TAS feature uses the gPTP timer.

Frame preemption [802.3br, 802.1Qbu]

Frame preemption is a standard defined in IEEE 802.3br and 802.1Qbu. This standard allows preempting low-priority frames to send high-priority frames.

Verification process

Frame preemption needs to verify the frame preemption capability of the link partner. The figure below shows the verification process. Verify frames have special preambles, so these frames are rejected on devices which do not support frame preemption.

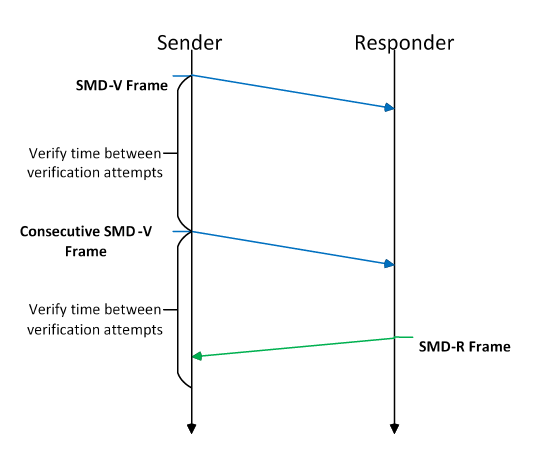

Frame preemption verification

In the r_layer3_switch module, the verification process is performed when the r_rmac_phy module links up and frame preemption is enabled in the configuration.

Preemption

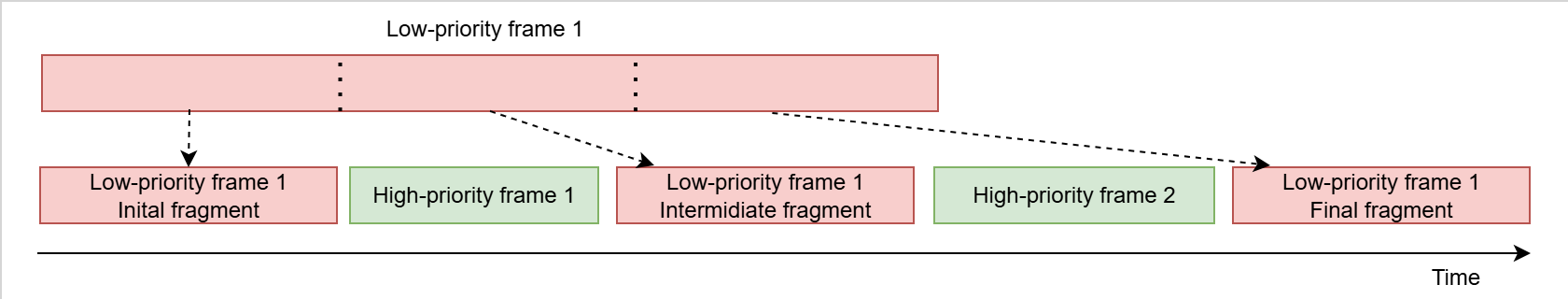

The figure below shows the behavior of frame preemption. The low-priority frame (preemptable frame) is separated into several fragments, and they can be transferred in the intervals between high-priority frames (express frames). As a result, the negative influence on the throughput of high-priority frames is prevented.

Frame preemption behavior

In the r_layer3_switch module, each IPV queue can be configured to send either preemptable frames or express frames. ESWM IP automatically assembles separated frames when receiving them.

Note
Sending preemptable frames is enabled when the verification process succeeds.

Per Stream Filtering and Policing (PSFP) [802.1Qci]

Per Stream Filtering and Policing (PSFP) feature is a standard defined in IEEE 802.1Qci that supports MSDU and Meter filters.

MAC Service Data Unit (MSDU) Filter

MAC Service Data Unit (MSDU)filter filters packets when Ethernet frame size (payload) is more than a threshold.

Meter Filter

Meter filter filters packets when information rate is more than a threshold.

The filtered packets are sent to green or yellow bucket by Meter filter configuration.

Normal Mode and Throttle Mode

MSDU and Meter filters support normal mode and throttle mode.

In normal mode, the driver does not send packets filtered MSDU or Meter filter. Also, error status flag becomes 1 when the packet is more than a threshold.

In throttle mode, the driver keeps not to send all packets when error status flag is 1. User can clear error status flag using PsfpClearErrorStatus() API.

Big endian

When big endian mode is selected, the endian setting of ESWM bus is also changed to big endian. As a result, descriptor fields require endian conversion for word (16-bit) and long word (32-bit) accesses.

Most descriptor members behave correctly regardless of endianness. However, a few members require special handling before writing to the descriptor or after reading from it.

typedef struct st_layer3_switch_basic_descriptor
{
...
volatile uint32_t ptr_l;
} layer3_switch_basic_descriptor_t;
/* Endian conversion must be applied to ptr_l */
transmission_descriptor.basic.ptr_l = BYTES_SWAP_32((uintptr_t) ethernet_buffer));
struct st_reception_ethernet_descriptor
{
volatile uint32_t tsns : 30;
volatile uint32_t tsv : 1;
volatile uint32_t tsd : 1;
volatile uint32_t tss;
} reception_ethernet_descriptor;
uint32_t * p_descriptor_word = (uint32_t *) (&descriptor.reception_ethernet_descriptor);
p_descriptor_word[index] = BYTES_SWAP_32(p_descriptor_word[index]);

Limitations

Developers should be aware of the following limitations when using the r_layer3_switch:

Examples

Basic Example

This is a basic example of transmission use of the LAYER3 SWITCH.

#define LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE (8)
#define LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE (1514)
#define LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_UPPER ((uint8_t) ((LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE & \
0xFF00) >> 8))
#define LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_LOWER ((uint8_t) LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE & \
0x00FF)
#define LAYER3_SWITCH_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE (60)
#define LAYER3_SWITCH_EXAMPLE_SOURCE_MAC_ADDRESS 0x74, 0x90, 0x50, 0x00, 0x79, 0x01
#define LAYER3_SWITCH_EXAMPLE_DESTINATION_MAC_ADDRESS 0x74, 0x90, 0x50, 0x00, 0x79, 0x02
#define LAYER3_SWITCH_EXAMPLE_FRAME_TYPE 0x00, 0x2E
#define LAYER3_SWITCH_EXAMPLE_PAYLOAD 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, \
0x00, \
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, \
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, \
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
/* Swap bytes of a 32-bit value */
#if defined(__BIG)
static uint32_t layer3_switch_example_bytes_swap_32_func (uint32_t x)
{
return ((x & 0x000000FFUL) << 24) |
((x & 0x0000FF00UL) << 8) |
((x & 0x00FF0000UL) >> 8) |
((x & 0xFF000000UL) >> 24);
}
#define LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32(x) layer3_switch_example_bytes_swap_32_func(x)
#endif
layer3_switch_descriptor_t gp_descriptor_pool[LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE];
uint8_t gp_ether_buffer0[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer1[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer2[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer3[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer4[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer5[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer6[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer7[LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE];
uint8_t * gpp_ether_buffers[8] =
{
&gp_ether_buffer0[0],
&gp_ether_buffer1[0],
&gp_ether_buffer2[0],
&gp_ether_buffer3[0],
&gp_ether_buffer4[0],
&gp_ether_buffer5[0],
&gp_ether_buffer6[0],
&gp_ether_buffer7[0],
};
/* Transmit data buffer */
uint8_t gp_send_data[LAYER3_SWITCH_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE] =
{
LAYER3_SWITCH_EXAMPLE_DESTINATION_MAC_ADDRESS, /* Destination MAC address */
LAYER3_SWITCH_EXAMPLE_SOURCE_MAC_ADDRESS, /* Source MAC address */
LAYER3_SWITCH_EXAMPLE_FRAME_TYPE, /* Type field */
LAYER3_SWITCH_EXAMPLE_PAYLOAD /* Payload value (46byte) */
};
void layer3_switch_transmit_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint32_t queue_index = 0;
/* Configure transmission queue. */
layer3_switch_descriptor_queue_cfg_t transmission_queue_cfg =
{
.descriptor_format = LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED,
.type = LAYER3_SWITCH_QUEUE_TYPE_TX,
.write_back_mode = LAYER3_SWITCH_WRITE_BACK_MODE_FULL,
.p_descriptor_array = gp_descriptor_pool,
.p_ts_descriptor_array = NULL,
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE,
.array_length = LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE,
.ports = LAYER3_SWITCH_PORT_BITMASK_PORT0,
};
/* Prepare data for transmission. */
memcpy(gpp_ether_buffers[0], gp_send_data, LAYER3_SWITCH_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE);
/* Initialize transmission descriptor. */
layer3_switch_descriptor_t transmission_descriptor = {0};
transmission_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_LOWER;
transmission_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_UPPER;
transmission_descriptor.basic.die = 1;
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
transmission_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gpp_ether_buffers);
#else
transmission_descriptor.basic.ptr_l = (uintptr_t) gpp_ether_buffers;
#endif
transmission_descriptor.basic.dt = LAYER3_SWITCH_DESCRIPTOR_TYPE_FSINGLE;
transmission_descriptor.info1_tx.fmt = 1;
transmission_descriptor.info1_tx.dv = LAYER3_SWITCH_PORT_BITMASK_PORT0;
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
/* Handle any errors. This function should be defined by the user. */
assert(FSP_SUCCESS == err);
/* Initialize PHY-LSI chip. */
err = R_RMAC_PHY_ChipInit(&g_rmac_phy0_ctrl, &g_rmac_phy0_cfg);
assert(FSP_SUCCESS == err);
/* Start auto negotiation. */
err = R_RMAC_PHY_StartAutoNegotiate(&g_rmac_phy0_ctrl);
assert(FSP_SUCCESS == err);
do
{
/* Get the Ethernet link status read from the PHY-LSI Basic Status registers until link-up. */
err = R_RMAC_PHY_LinkStatusGet(&g_rmac_phy0_ctrl);
R_BSP_SoftwareDelay(10, BSP_DELAY_UNITS_MILLISECONDS);
} while (FSP_SUCCESS != err);
/* Create descriptor queue. */
err = R_LAYER3_SWITCH_CreateDescriptorQueue(&g_layer3_switch0_ctrl, &queue_index, &transmission_queue_cfg);
assert(FSP_SUCCESS == err);
/* Set descriptor to queue. */
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Start transmission. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MILLISECONDS);
/* Get descriptor status. */
err = R_LAYER3_SWITCH_GetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Check if transmission is completed. */
assert(LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY == transmission_descriptor.basic.dt);
/* Disable transmission and receive function and close the layer3 switch instance. */
R_LAYER3_SWITCH_Close(&g_layer3_switch0_ctrl);
assert(FSP_SUCCESS == err);
}

This is a basic example of reception use of the LAYER3 SWITCH.

#define LAYER3_SWITCH_EXAMPLE_RECEPTION_QUEUE_LENGTH (4)
bool g_complete_reception_flag;
void layer3_switch_receive_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint32_t queue_index = 1;
/* Configure reception queue. */
layer3_switch_descriptor_queue_cfg_t reception_queue_cfg =
{
.descriptor_format = LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED,
.type = LAYER3_SWITCH_QUEUE_TYPE_RX,
.write_back_mode = LAYER3_SWITCH_WRITE_BACK_MODE_FULL,
.p_descriptor_array = gp_descriptor_pool,
.p_ts_descriptor_array = NULL,
#if LAYER3_SWITCH_CFG_GPTP_ENABLE
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_ENABLE,
#else
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE,
#endif
.array_length = LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE,
.ports = LAYER3_SWITCH_PORT_BITMASK_PORT0,
};
/* Initialize reception descriptor. */
layer3_switch_descriptor_t reception_descriptor = {0};
reception_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_LOWER;
reception_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_UPPER;
reception_descriptor.basic.die = 1;
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
reception_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gpp_ether_buffers);
#else
reception_descriptor.basic.ptr_l = (uintptr_t) gpp_ether_buffers;
#endif
reception_descriptor.basic.dt = LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY;
reception_descriptor.info1_tx.fmt = 1;
reception_descriptor.info1_tx.dv = LAYER3_SWITCH_PORT_BITMASK_PORT0;
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
assert(FSP_SUCCESS == err);
/* Initialize PHY-LSI chip. */
err = R_RMAC_PHY_ChipInit(&g_rmac_phy0_ctrl, &g_rmac_phy0_cfg);
assert(FSP_SUCCESS == err);
/* Start auto negotiation. */
err = R_RMAC_PHY_StartAutoNegotiate(&g_rmac_phy0_ctrl);
assert(FSP_SUCCESS == err);
do
{
/* Get the Ethernet link status read from the PHY-LSI Basic Status registers until link-up. */
err = R_RMAC_PHY_LinkStatusGet(&g_rmac_phy0_ctrl);
R_BSP_SoftwareDelay(10, BSP_DELAY_UNITS_MILLISECONDS);
} while (FSP_SUCCESS != err);
/* Create descriptor queue. */
err = R_LAYER3_SWITCH_CreateDescriptorQueue(&g_layer3_switch0_ctrl, &queue_index, &reception_queue_cfg);
assert(FSP_SUCCESS == err);
/* Copy descriptor to queue. */
for (uint16_t i = 0; i < LAYER3_SWITCH_EXAMPLE_RECEPTION_QUEUE_LENGTH - 1; i++)
{
memset(gpp_ether_buffers[i], 0, LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE);
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
reception_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gpp_ether_buffers[i]);
#else
reception_descriptor.basic.ptr_l = (uintptr_t) gpp_ether_buffers[i];
#endif
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &reception_descriptor);
assert(FSP_SUCCESS == err);
}
g_complete_reception_flag = false;
/* Start reception. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
/* Wait to complete reception. */
while (true != g_complete_reception_flag)
{
R_BSP_SoftwareDelay(10, BSP_DELAY_UNITS_MILLISECONDS);
}
/* Disable transmission and receive function and close the layer3 switch instance. */
R_LAYER3_SWITCH_Close(&g_layer3_switch0_ctrl);
assert(FSP_SUCCESS == err);
}
void layer3_switch_example_callback (ether_switch_callback_args_t * p_args) {
switch (p_args->event)
{
case ETHER_SWITCH_EVENT_RX_COMPLETE:
{
g_complete_reception_flag = true;
break;
}
case ETHER_SWITCH_EVENT_TX_COMPLETE:
{
break;
}
case ETHER_SWITCH_EVENT_RX_QUEUE_FULL:
{
break;
}
case ETHER_SWITCH_EVENT_RX_MESSAGE_LOST:
{
break;
}
default:
{
break;
}
}
}

TSN Example

The below is an example of forwarding frames with Credit Based Shaper (CBS).

void layer3_switch_cbs_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint8_t source_port = 0;
uint8_t destination_port = 1;
layer3_switch_port_cfg_t port_cfg = {0};
/* Set bandwidth of queue 0 to 30 Mbps, queue 1 to 20 Mbps. */
layer3_switch_cbs_cfg_t cbs_cfg =
{
.band_width_list = {30, 20, 0, 0, 0, 0, 0, 0 },
.max_burst_num_list = {10, 10, 10, 10, 10, 10, 10, 10 },
};
/* Destination of forwarding target frames are 00:01:02:03:04:05 and 10:11:12:13:14:15*/
uint8_t p_mac_address_list[2][6] =
{
{0x00, 0x01, 0x02, 0x03, 0x04, 0x05, },
{0x10, 0x11, 0x12, 0x13, 0x14, 0x15, },
};
layer3_switch_table_cfg_t mac_table_cfg =
{
.port_cfg_list = {{.mac_table_enable = true}, {.mac_table_enable = true}},
.unsecure_entry_maximum_num = 2,
};
layer3_switch_frame_filter_t mac_entry_frame;
layer3_switch_table_entry_cfg_t mac_entry_cfg =
{
.destination_ports = (uint32_t) (1 << destination_port),
.source_ports = (uint32_t) (1 << source_port),
.internal_priority_update_enable = true,
.entry_enable = true,
};
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
assert(FSP_SUCCESS == err);
/* Initialize MAC table entry.*/
mac_entry_frame.entry_type = LAYER3_SWITCH_TABLE_ENTRY_TYPE_MAC;
/* Reset MAC table. */
err = R_LAYER3_SWITCH_ConfigureTable(&g_layer3_switch0_ctrl, &mac_table_cfg);
assert(FSP_SUCCESS == err);
/* Learn destination MAC address of a forwarding frame. */
for (uint8_t i = 0; i < 2; i++)
{
mac_entry_frame.p_destination_mac_address = p_mac_address_list[i];
mac_entry_cfg.internal_priority_update_value = i;
err = R_LAYER3_SWITCH_AddTableEntry(&g_layer3_switch0_ctrl, &mac_entry_frame, &mac_entry_cfg);
assert(FSP_SUCCESS == err);
}
/* Configure and enable CBS. */
port_cfg.p_cbs_cfg = &cbs_cfg;
err = R_LAYER3_SWITCH_ConfigurePort(&g_layer3_switch0_ctrl, destination_port, &port_cfg);
assert(FSP_SUCCESS == err);
while (1)
{
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MILLISECONDS);
}
}

The below is an example of forwarding frames with Time Aware Shaper (TAS).

#define LAYER3_SWITCH_EXAMPLE_GPTP_TIMER (0)
#define LAYER3_SWITCH_EXAMPLE_GPTP_CLOCK_PERIOD (4)
void layer3_switch_tas_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint8_t source_port = 0;
uint8_t destination_port = 1;
layer3_switch_table_entry_t mac_table_entry;
layer3_switch_tas_cfg_t tas_cfg;
layer3_switch_tas_entry_t closed_entry_list[1] = {{.state = LAYER3_SWITCH_TAS_GATE_STATE_CLOSE, .time = 0}};
layer3_switch_tas_gate_cfg_t tas_gate_closed =
{
.tas_entry_num = 1, .initial_gate_state = LAYER3_SWITCH_TAS_GATE_STATE_CLOSE,
.p_tas_entry_list = closed_entry_list
};
gptp_instance_t const * p_gptp_instance = g_layer3_switch0_extended_cfg.p_gptp_instance;
gptp_timer_cfg_t timer_cfg = {.clock_period = LAYER3_SWITCH_EXAMPLE_GPTP_CLOCK_PERIOD};
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
assert(FSP_SUCCESS == err);
/* Gate 0 and 1 are repeat Open/Close. Other gates are alwayes closed. */
tas_cfg.gate_cfg_list[0] = g_layer3_switch_example_tas_gate_0_cfg;
tas_cfg.gate_cfg_list[1] = g_layer3_switch_example_tas_gate_1_cfg;
for (uint8_t i = 2; i < 8; i++)
{
tas_cfg.gate_cfg_list[i] = tas_gate_closed;
}
tas_cfg.gptp_timer_number = LAYER3_SWITCH_EXAMPLE_GPTP_TIMER;
tas_cfg.cycle_time_start_high = LAYER3_SWITCH_EXAMPLE_CYCLE_START_TIME_UPPER_32BIT;
tas_cfg.cycle_time_start_low = LAYER3_SWITCH_EXAMPLE_CYCLE_START_TIME_UPPER_32BIT;
tas_cfg.cycle_time = LAYER3_SWITCH_EXAMPLE_CYCLE_TIME;
/* Start gPTP timer before enable TAS feature. */
p_gptp_instance->p_api->timerCfg(p_gptp_instance->p_ctrl, LAYER3_SWITCH_EXAMPLE_GPTP_TIMER, &timer_cfg);
p_gptp_instance->p_api->start(p_gptp_instance->p_ctrl, LAYER3_SWITCH_EXAMPLE_GPTP_TIMER);
/* Configure and enable TAS. */
err = R_LAYER3_SWITCH_ConfigureTAS(&g_layer3_switch0_ctrl, destination_port, &tas_cfg);
assert(FSP_SUCCESS == err);
err = R_LAYER3_SWITCH_EnableTAS(&g_layer3_switch0_ctrl, destination_port);
assert(FSP_SUCCESS == err);
/* Initialize MAC table entry.*/
err = R_LAYER3_SWITCH_ConfigureTable(&g_layer3_switch0_ctrl, &g_layer3_switch_example_mac_table_cfg);
assert(FSP_SUCCESS == err);
/* Learn a MAC entry. */
mac_table_entry.target_frame.entry_type = LAYER3_SWITCH_TABLE_ENTRY_TYPE_MAC;
mac_table_entry.entry_cfg.entry_enable = true;
mac_table_entry.entry_cfg.security_enable = true;
mac_table_entry.entry_cfg.destination_ports = (uint32_t) (1 << destination_port);
mac_table_entry.entry_cfg.source_ports = (uint32_t) (1 << source_port);
mac_table_entry.entry_cfg.internal_priority_update_enable = true;
for (uint8_t i = 0; i < 2; i++)
{
mac_table_entry.target_frame.p_destination_mac_address = g_layer3_switch_example_mac_address_list[i];
mac_table_entry.entry_cfg.internal_priority_update_value = i;
err = R_LAYER3_SWITCH_AddTableEntry(&g_layer3_switch0_ctrl,
&mac_table_entry.target_frame,
&mac_table_entry.entry_cfg);
assert(FSP_SUCCESS == err);
}
while (1)
{
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MILLISECONDS);
}
}

PSFP Example

MSDU Filter

The below is an example of PSFP MSDU filter.

#define LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_ID (0)
#define LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_FRAME_MAX_SIZE (60)
#define LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_CLEAR_BITMASK (0xFFFF)
void layer3_switch_psfp_msdu_filter_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint8_t source_port = 0;
uint8_t destination_port = 1;
uint32_t queue_index = 0;
layer3_switch_table_entry_t mac_table_entry;
layer3_switch_psfp_error_status_bitmask_t bitmasks;
layer3_switch_psfp_msdu_filter_cfg_t psfp_msdu_filter_cfg;
/* Configure transmission queue. */
layer3_switch_descriptor_queue_cfg_t transmission_queue_cfg =
{
.descriptor_format = LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED,
.type = LAYER3_SWITCH_QUEUE_TYPE_TX,
.write_back_mode = LAYER3_SWITCH_WRITE_BACK_MODE_FULL,
.p_descriptor_array = gp_descriptor_pool,
.p_ts_descriptor_array = NULL,
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE,
.array_length = LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE,
.ports = LAYER3_SWITCH_PORT_BITMASK_PORT0,
};
/* Prepare data for transmission. */
memcpy(gpp_ether_buffers[0], gp_send_data, LAYER3_SWITCH_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE);
/* Initialize transmission descriptor. */
layer3_switch_descriptor_t transmission_descriptor = {0};
transmission_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_LOWER;
transmission_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_UPPER;
transmission_descriptor.basic.die = 1;
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
transmission_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gpp_ether_buffers);
#else
transmission_descriptor.basic.ptr_l = (uintptr_t) gpp_ether_buffers;
#endif
transmission_descriptor.basic.dt = LAYER3_SWITCH_DESCRIPTOR_TYPE_FSINGLE;
transmission_descriptor.info1_tx.fmt = 1;
transmission_descriptor.info1_tx.dv = LAYER3_SWITCH_PORT_BITMASK_PORT0;
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
assert(FSP_SUCCESS == err);
/* Initialize MAC table entry.*/
err = R_LAYER3_SWITCH_ConfigureTable(&g_layer3_switch0_ctrl, &g_layer3_switch_example_mac_table_cfg);
assert(FSP_SUCCESS == err);
/* Learn a MAC entry. */
mac_table_entry.target_frame.entry_type = LAYER3_SWITCH_TABLE_ENTRY_TYPE_LAYER3;
mac_table_entry.entry_cfg.entry_enable = true;
mac_table_entry.entry_cfg.security_enable = true;
mac_table_entry.entry_cfg.destination_ports = (uint32_t) (1 << destination_port);
mac_table_entry.entry_cfg.source_ports = (1 << source_port);
mac_table_entry.entry_cfg.internal_priority_update_enable = true;
/* Configure PSFP MSDU filter. */
psfp_msdu_filter_cfg.msdu_filter_id = LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_ID;
psfp_msdu_filter_cfg.maximum_frame_size = LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_FRAME_MAX_SIZE;
psfp_msdu_filter_cfg.mode = LAYER3_SWITCH_MSDU_FILTER_THROTTLE_MODE;
mac_table_entry.entry_cfg.p_psfp_msdu_filter_cfg = &psfp_msdu_filter_cfg;
for (uint8_t i = 0; i < 2; i++)
{
mac_table_entry.target_frame.p_destination_mac_address = g_layer3_switch_example_mac_address_list[i];
mac_table_entry.entry_cfg.internal_priority_update_value = i;
err = R_LAYER3_SWITCH_AddTableEntry(&g_layer3_switch0_ctrl,
&mac_table_entry.target_frame,
&mac_table_entry.entry_cfg);
assert(FSP_SUCCESS == err);
}
/* Create descriptor queue. */
err = R_LAYER3_SWITCH_CreateDescriptorQueue(&g_layer3_switch0_ctrl, &queue_index, &transmission_queue_cfg);
assert(FSP_SUCCESS == err);
/* Set descriptor to queue. */
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Start transmission. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
/* Set bitmask for clearing error status. */
bitmasks.msdu_filter_bitmask = LAYER3_SWITCH_EXAMPLE_PSFP_MSDU_FILTER_CLEAR_BITMASK;
bitmasks.meter_filter_bitmask = 0;
err = R_LAYER3_SWITCH_PsfpClearErrorStatus(&g_layer3_switch0_ctrl, bitmasks);
assert(FSP_SUCCESS == err);
}

Meter Filter

The below is an example of PSFP Meter filter.

#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_FILTER_ID (0)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_CBS (1000)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_CIR (10)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_EBS (1000)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_EIR (10)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_SYSTEM_CLOCK (250)
#define LAYER3_SWITCH_EXAMPLE_PSFP_INFORMATION_RATE_DIVIDE_VALUE (8)
#define LAYER3_SWITCH_EXAMPLE_PSFP_INFORMATION_RATE_1M (1000000)
#define LAYER3_SWITCH_EXAMPLE_PSFP_INFORMATION_RATE_MULTIPLY_VALUE (65536)
#define LAYER3_SWITCH_EXAMPLE_PSFP_METER_FILTER_CLEAR_BITMASK (0xFFFFFFFF)
void layer3_switch_psfp_meter_filter_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint8_t source_port = 0;
uint8_t destination_port = 1;
uint32_t queue_index = 0;
layer3_switch_table_entry_t mac_table_entry;
layer3_switch_psfp_error_status_bitmask_t bitmasks;
layer3_switch_psfp_meter_filter_cfg_t psfp_meter_filter_cfg;
/* Configure transmission queue. */
layer3_switch_descriptor_queue_cfg_t transmission_queue_cfg =
{
.descriptor_format = LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED,
.type = LAYER3_SWITCH_QUEUE_TYPE_TX,
.write_back_mode = LAYER3_SWITCH_WRITE_BACK_MODE_FULL,
.p_descriptor_array = gp_descriptor_pool,
.p_ts_descriptor_array = NULL,
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE,
.array_length = LAYER3_SWITCH_EXAMPLE_DESCRIPTOR_POOL_SIZE,
.ports = LAYER3_SWITCH_PORT_BITMASK_PORT0,
};
/* Prepare data for transmission. */
memcpy(gpp_ether_buffers[0], gp_send_data, LAYER3_SWITCH_EXAMPLE_TRANSMIT_ETHERNET_FRAME_SIZE);
/* Initialize transmission descriptor. */
layer3_switch_descriptor_t transmission_descriptor = {0};
transmission_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_LOWER;
transmission_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_MAXIMUM_FRAME_SIZE_UPPER;
transmission_descriptor.basic.die = 1;
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
transmission_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gpp_ether_buffers);
#else
transmission_descriptor.basic.ptr_l = (uintptr_t) gpp_ether_buffers;
#endif
transmission_descriptor.basic.dt = LAYER3_SWITCH_DESCRIPTOR_TYPE_FSINGLE;
transmission_descriptor.info1_tx.fmt = 1;
transmission_descriptor.info1_tx.dv = LAYER3_SWITCH_PORT_BITMASK_PORT0;
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
assert(FSP_SUCCESS == err);
/* Initialize MAC table entry.*/
err = R_LAYER3_SWITCH_ConfigureTable(&g_layer3_switch0_ctrl, &g_layer3_switch_example_mac_table_cfg);
assert(FSP_SUCCESS == err);
/* Learn a MAC entry. */
mac_table_entry.target_frame.entry_type = LAYER3_SWITCH_TABLE_ENTRY_TYPE_LAYER3;
mac_table_entry.entry_cfg.entry_enable = true;
mac_table_entry.entry_cfg.security_enable = true;
mac_table_entry.entry_cfg.destination_ports = (uint32_t) (1 << destination_port);
mac_table_entry.entry_cfg.source_ports = (1 << source_port);
mac_table_entry.entry_cfg.internal_priority_update_enable = true;
mac_table_entry.entry_cfg.p_psfp_msdu_filter_cfg = NULL;
mac_table_entry.entry_cfg.p_psfp_meter_filter_cfg = NULL;
mac_table_entry.entry_cfg.p_frer_entry_cfg = NULL;
mac_table_entry.entry_cfg.layer3.p_update_configs = NULL;
mac_table_entry.entry_cfg.layer3.number_of_configs = 0;
mac_table_entry.entry_cfg.destination_queue_index = 0;
/* Configure PSFP Meter filter. */
psfp_meter_filter_cfg.meter_filter_id = LAYER3_SWITCH_EXAMPLE_PSFP_METER_FILTER_ID;
psfp_meter_filter_cfg.cbs = LAYER3_SWITCH_EXAMPLE_PSFP_METER_CBS;
psfp_meter_filter_cfg.cir = layer3_switch_psfp_information_rate_example(
LAYER3_SWITCH_EXAMPLE_PSFP_METER_CIR,
LAYER3_SWITCH_EXAMPLE_PSFP_METER_SYSTEM_CLOCK);
psfp_meter_filter_cfg.ebs = LAYER3_SWITCH_EXAMPLE_PSFP_METER_EBS;
psfp_meter_filter_cfg.eir = layer3_switch_psfp_information_rate_example(
LAYER3_SWITCH_EXAMPLE_PSFP_METER_EIR,
LAYER3_SWITCH_EXAMPLE_PSFP_METER_SYSTEM_CLOCK);
psfp_meter_filter_cfg.mode = LAYER3_SWITCH_METER_FILTER_THROTTLE_MODE;
psfp_meter_filter_cfg.drop_red_frame = LAYER3_SWITCH_METER_FILTER_DROP_RED_FRAME;
psfp_meter_filter_cfg.coupling_enable = LAYER3_SWITCH_METER_FILTER_COUPLING_STATUS_DISABLE;
psfp_meter_filter_cfg.dei_handling_policy = LAYER3_SWITCH_METER_FILTER_DEI_HANDLING_POLICY_YELLOW;
psfp_meter_filter_cfg.pcp_handling_policy = LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_GREEN_ALL;
mac_table_entry.entry_cfg.p_psfp_meter_filter_cfg = &psfp_meter_filter_cfg;
mac_table_entry.target_frame.p_destination_mac_address = g_layer3_switch_example_mac_address_list[0];
mac_table_entry.entry_cfg.internal_priority_update_value = 0;
err = R_LAYER3_SWITCH_AddTableEntry(&g_layer3_switch0_ctrl,
&mac_table_entry.target_frame,
&mac_table_entry.entry_cfg);
assert(FSP_SUCCESS == err);
/* Create descriptor queue. */
err = R_LAYER3_SWITCH_CreateDescriptorQueue(&g_layer3_switch0_ctrl, &queue_index, &transmission_queue_cfg);
assert(FSP_SUCCESS == err);
/* Set descriptor to queue. */
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Start transmission. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
/* Set bitmask for clearing error status. */
bitmasks.msdu_filter_bitmask = 0;
bitmasks.meter_filter_bitmask = LAYER3_SWITCH_EXAMPLE_PSFP_METER_FILTER_CLEAR_BITMASK;
err = R_LAYER3_SWITCH_PsfpClearErrorStatus(&g_layer3_switch0_ctrl, bitmasks);
assert(FSP_SUCCESS == err);
}

Frame Preemption Example

The below is an example of Frame Preemption.

#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_DESCRIPTOR_QUEUE_LENGTH (3)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_MAXIMUM_FRAME_SIZE (1514)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_SOURCE_MAC_ADDRESS 0x74, 0x90, 0x50, 0x00, 0x79, 0x01
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_DESTINATION_MAC_ADDRESS 0x44, 0x44, 0x44, 0x00, 0x00, 0x0A
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_DESTINATION_MAC_ADDRESS 0x44, 0x44, 0x44, 0x00, 0x00, 0x0B
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_FRAME_TYPE 0x05, 0xDC // 1500(=0x05DC) byte
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_FRAME_TYPE 0x00, 0x32 // 50(=0x0032) byte
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_PRIORITY (1)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_PRIORITY (0)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE (64)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE (1514)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE_UPPER \
((uint8_t) ((LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE & \
0xFF00) >> 8))
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE_LOWER \
((uint8_t) LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE & \
0x00FF)
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE_UPPER \
((uint8_t) ((LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE & \
0xFF00) >> 8))
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE_LOWER \
((uint8_t) LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE & \
0x00FF)
/* 50 byte data */
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_PAYLOAD \
0xFF, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0xFF, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0xFF, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0xFF, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0xFF, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09
/* 1500 byte data */
#define LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_PAYLOAD \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9, \
0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, \
0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, \
0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, \
0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, \
0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, \
0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, \
0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, \
0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, \
0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, \
0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, \
0xA0, 0xA1, 0xA2, 0xA3, 0xA4, 0xA5, 0xA6, 0xA7, 0xA8, 0xA9, \
0xB0, 0xB1, 0xB2, 0xB3, 0xB4, 0xB5, 0xB6, 0xB7, 0xB8, 0xB9, \
0xC0, 0xC1, 0xC2, 0xC3, 0xC4, 0xC5, 0xC6, 0xC7, 0xC8, 0xC9, \
0xD0, 0xD1, 0xD2, 0xD3, 0xD4, 0xD5, 0xD6, 0xD7, 0xD8, 0xD9, \
0xE0, 0xE1, 0xE2, 0xE3, 0xE4, 0xE5, 0xE6, 0xE7, 0xE8, 0xE9,
layer3_switch_descriptor_t gp_tx_descriptor_array[LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_DESCRIPTOR_QUEUE_LENGTH];
uint8_t gp_ether_buffer_express_frame[LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_MAXIMUM_FRAME_SIZE];
uint8_t gp_ether_buffer_preemptable_frame[LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_MAXIMUM_FRAME_SIZE];
/* Transmit data buffer */
uint8_t gp_high_send_data[LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_MAXIMUM_FRAME_SIZE] =
{
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_DESTINATION_MAC_ADDRESS, /* Destination MAC address */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_SOURCE_MAC_ADDRESS, /* Source MAC address */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_FRAME_TYPE, /* Type field */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_PAYLOAD /* Payload value (46byte) */
};
uint8_t gp_low_send_data[LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_MAXIMUM_FRAME_SIZE] =
{
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_DESTINATION_MAC_ADDRESS, /* Destination MAC address */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_SOURCE_MAC_ADDRESS, /* Source MAC address */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_FRAME_TYPE, /* Type field */
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_PAYLOAD /* Payload value (1500byte) */
};
bool g_tx_complete_flag = false;
void layer3_switch_frame_preemption_transmit_example (void)
{
fsp_err_t err = FSP_SUCCESS;
uint32_t queue_index = 0;
layer3_switch_descriptor_t transmission_descriptor = {0};
/* Configure transmission queue. */
layer3_switch_descriptor_queue_cfg_t transmission_queue_cfg =
{
.descriptor_format = LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED,
.type = LAYER3_SWITCH_QUEUE_TYPE_TX,
.write_back_mode = LAYER3_SWITCH_WRITE_BACK_MODE_FULL,
.p_descriptor_array = gp_tx_descriptor_array,
.p_ts_descriptor_array = NULL,
.rx_timestamp_storage = LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE,
.array_length = LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_DESCRIPTOR_QUEUE_LENGTH,
.ports = LAYER3_SWITCH_PORT_BITMASK_PORT0,
};
/* Open the layer3 switch instance with initial configuration. */
err = R_LAYER3_SWITCH_Open(&g_layer3_switch0_ctrl, &g_layer3_switch0_cfg);
/* Handle any errors. This function should be defined by the user. */
assert(FSP_SUCCESS == err);
/* Initialize PHY-LSI chip. */
err = R_RMAC_PHY_ChipInit(&g_rmac_phy0_ctrl, &g_rmac_phy0_cfg);
assert(FSP_SUCCESS == err);
/* Start auto negotiation. */
err = R_RMAC_PHY_StartAutoNegotiate(&g_rmac_phy0_ctrl);
assert(FSP_SUCCESS == err);
do
{
/* Get the Ethernet link status read from the PHY-LSI Basic Status registers until link-up. */
err = R_RMAC_PHY_LinkStatusGet(&g_rmac_phy0_ctrl);
R_BSP_SoftwareDelay(10, BSP_DELAY_UNITS_MILLISECONDS);
} while (FSP_SUCCESS != err);
/* Create descriptor queue. */
err = R_LAYER3_SWITCH_CreateDescriptorQueue(&g_layer3_switch0_ctrl, &queue_index, &transmission_queue_cfg);
assert(FSP_SUCCESS == err);
/* Prepare data for preemptable frame. */
memcpy(gp_ether_buffer_preemptable_frame,
gp_low_send_data,
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE);
/* Initialize transmission descriptor for preemptable frame. */
transmission_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE_LOWER;
transmission_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_SEND_FRAME_SIZE_UPPER;
transmission_descriptor.basic.die = 1;
transmission_descriptor.basic.dt = LAYER3_SWITCH_DESCRIPTOR_TYPE_FSINGLE;
transmission_descriptor.info1_tx.fmt = 1;
transmission_descriptor.info1_tx.dv = LAYER3_SWITCH_PORT_BITMASK_PORT0;
/* Sending a preemptable frame with lower IPV. */
transmission_descriptor.info1_tx.ipv = (uint8_t) (LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_LOW_PRIORITY & 0x07);
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
transmission_descriptor.basic.ptr_l = LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32(
(uintptr_t) gp_ether_buffer_preemptable_frame);
#else
transmission_descriptor.basic.ptr_l = (uintptr_t) gp_ether_buffer_preemptable_frame;
#endif
/* Set descriptor to queue. */
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Start transmission for sending preemptable frame. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
while (!g_tx_complete_flag)
{
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MICROSECONDS);
}
g_tx_complete_flag = false;
/* Prepare data for express frame. */
memcpy(gp_ether_buffer_express_frame, gp_high_send_data,
LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE);
transmission_descriptor.basic.ds_l = LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE_LOWER;
transmission_descriptor.basic.ds_h = LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_SEND_FRAME_SIZE_UPPER;
/* Sending a preemptable frame with higher IPV. */
transmission_descriptor.info1_tx.ipv = (uint8_t) (LAYER3_SWITCH_EXAMPLE_FRAME_PREEMPTION_HIGH_PRIORITY & 0x07);
#if defined(__BIG)
/* Endian conversion must be applied to ptr_l before writing. */
transmission_descriptor.basic.ptr_l =
LAYER3_SWITCH_EXAMPLE_BYTES_SWAP_32((uintptr_t) gp_ether_buffer_express_frame);
#else
transmission_descriptor.basic.ptr_l = (uintptr_t) gp_ether_buffer_express_frame;
#endif
/* Set descriptor to queue. */
err = R_LAYER3_SWITCH_SetDescriptor(&g_layer3_switch0_ctrl, queue_index, &transmission_descriptor);
assert(FSP_SUCCESS == err);
/* Start transmission for sending express frame. */
err = R_LAYER3_SWITCH_StartDescriptorQueue(&g_layer3_switch0_ctrl, queue_index);
assert(FSP_SUCCESS == err);
while (!g_tx_complete_flag)
{
R_BSP_SoftwareDelay(1, BSP_DELAY_UNITS_MICROSECONDS);
}
/* Close the layer3 switch instance. */
R_LAYER3_SWITCH_Close(&g_layer3_switch0_ctrl);
assert(FSP_SUCCESS == err);
}
void layer3_switch_frame_preemption_example_callback (ether_switch_callback_args_t * p_args) {
switch (p_args->event)
{
case ETHER_SWITCH_EVENT_RX_COMPLETE:
{
break;
}
case ETHER_SWITCH_EVENT_TX_COMPLETE:
{
g_tx_complete_flag = true;
break;
}
case ETHER_SWITCH_EVENT_RX_QUEUE_FULL:
{
break;
}
case ETHER_SWITCH_EVENT_RX_MESSAGE_LOST:
{
break;
}
default:
{
break;
}
}
}

Data Structures

struct  layer3_switch_basic_descriptor_t

struct  layer3_switch_descriptor_t

struct  layer3_switch_ts_reception_process_descriptor_t

struct  layer3_switch_psfp_msdu_filter_cfg_t

struct  layer3_switch_psfp_msdu_filter_info_t

struct  layer3_switch_psfp_meter_filter_cfg_t

struct  layer3_switch_psfp_meter_filter_info_t

struct  layer3_switch_psfp_error_status_bitmask_t

struct  layer3_switch_frer_cfg_t

struct  layer3_switch_frer_entry_t

struct  layer3_switch_frer_entry_cfg_t

struct  layer3_switch_frer_sequence_recovery_status_t

struct  layer3_switch_descriptor_queue_cfg_t

struct  layer3_switch_cbs_cfg_t

struct  layer3_switch_port_cfg_t

struct  layer3_switch_descriptor_queue_status_t

struct  layer3_switch_ipv6_filter_address_offset_t

struct  layer3_switch_l3_stream_filter_cfg_t

struct  layer3_switch_frame_vlan_tag_t

struct  layer3_switch_frame_filter_t

struct  layer3_switch_l3_filter_t

struct  layer3_switch_l3_update_config_t

struct  layer3_switch_table_entry_cfg_t

struct  layer3_switch_table_entry_t

struct  layer3_switch_forwarding_port_cfg_t

struct  layer3_switch_table_t

struct  layer3_switch_table_cfg_t

struct  layer3_switch_extended_cfg_t

struct  layer3_switch_instance_ctrl_t

struct  layer3_switch_tas_entry_t

struct  layer3_switch_tas_gate_cfg_t

struct  layer3_switch_tas_cfg_t


Enumerations

enum  layer3_switch_descriptor_type_t

enum  layer3_switch_port_bitmask_t

enum  layer3_switch_queue_type_t

enum  layer3_switch_descriptor_format_t

enum  layer3_switch_write_back_mode_t

enum  layer3_switch_ip_version_t

enum  layer3_switch_ip_address_direction_t

enum  layer3_switch_magic_packet_detection_t

enum  layer3_switch_vlan_mode_t

enum  layer3_switch_vlan_ingress_mode_t

enum  layer3_switch_vlan_egress_mode_t

enum  layer3_switch_ip_protocol_t

enum  layer3_switch_forwarding_r_tag_t

enum  layer3_switch_l3_filter_bitmask_t

enum  layer3_switch_l3_update_bitmask_t

enum  layer3_switch_table_entry_type_t

enum  layer3_switch_table_status_t

enum  layer3_switch_tas_gate_state_t

enum  layer3_switch_rx_timestamp_storage_t

enum  layer3_switch_ts_descriptor_queue_status_t

enum  layer3_switch_preemptable_frame_fragment_size_t

enum  layer3_switch_psfp_filter_status_t

enum  layer3_switch_msdu_filter_mode_t

enum  layer3_switch_meter_filter_mode_t

enum  layer3_switch_meter_filter_coupling_status_t

enum  layer3_switch_meter_filter_drop_red_frame_t

enum  layer3_switch_meter_filter_dei_handling_policy_t

enum  layer3_switch_meter_filter_pcp_handling_policy_t


Data Structure Documentation

◆ layer3_switch_basic_descriptor_t

struct layer3_switch_basic_descriptor_t

GWCA descriptor.

Data Fields
volatile uint8_t ds_l 0.. 8 (8 bits), Descriptor size (low).
volatile uint8_t ds_h: 4 9..12 (4 bits), Descriptor size (High).
volatile uint8_t info0: 4 12..15 (4 bits), Information 0.
volatile uint8_t err: 3 16..18 (3 bits), Error, data size error, AXI bus error.
volatile uint8_t die: 1 19 (1 bit), Descriptor interrupt enable.
volatile uint8_t dt: 4 20..23 (4 bits), Descriptor type.
volatile uint8_t ptr_h 24..31 (8 bits), Pointer (High).
volatile uint32_t ptr_l 32..63 (32 bits), Pointer (Low).

◆ layer3_switch_descriptor_t

struct layer3_switch_descriptor_t

GWCA extended descriptor.

Data Fields
volatile
layer3_switch_basic_descriptor_t		 basic Basic descriptor fields.
union layer3_switch_descriptor_t __unnamed__

◆ layer3_switch_ts_reception_process_descriptor_t

struct layer3_switch_ts_reception_process_descriptor_t

GWCA TS reception process descriptor.

◆ layer3_switch_psfp_msdu_filter_cfg_t

struct layer3_switch_psfp_msdu_filter_cfg_t

Configuration of PSFP MSDU filter.

Data Fields
uint32_t msdu_filter_id PSFP MSDU filter ID.
uint32_t maximum_frame_size Maximum frame size is rejected by PSFP MSDU filter.
layer3_switch_msdu_filter_mode_t mode PSFP MSDU filter mode.

◆ layer3_switch_psfp_msdu_filter_info_t

struct layer3_switch_psfp_msdu_filter_info_t

Information of PSFP MSDU filter.

Data Fields
uint32_t msdu_filter_hw_id PSFP MSDU filter ID for hardware.
layer3_switch_psfp_filter_status_t status Status of PSFP MSDU filter.
layer3_switch_psfp_msdu_filter_cfg_t * p_psfp_msdu_filter_cfg Pointer to configuration of PSFP MSDU filter.

◆ layer3_switch_psfp_meter_filter_cfg_t

struct layer3_switch_psfp_meter_filter_cfg_t

Configuration of PSFP Meter filter for user.

Data Fields
uint32_t meter_filter_id PSFP Meter filter ID.
uint32_t cbs Maximum number of tokens (in bytes) contained in green bucket.
uint32_t cir Used to increment green tokens when green bucket is not full.
uint32_t ebs Maximum number of tokens (in bytes) contained in yellow bucket.
uint32_t eir Used to increment yellow tokens when yellow bucket is not full.
layer3_switch_meter_filter_mode_t mode Meter filter mode.
layer3_switch_meter_filter_drop_red_frame_t drop_red_frame Drop or not red frame by Meter filter.
layer3_switch_meter_filter_coupling_status_t coupling_enable When green bucket is full, CIR tokens are 0:lost, 1:added the yellow bucket.
layer3_switch_meter_filter_dei_handling_policy_t dei_handling_policy DEI handling policy for determining a frame color.
layer3_switch_meter_filter_pcp_handling_policy_t pcp_handling_policy PCP handling policy for determining a frame color.

◆ layer3_switch_psfp_meter_filter_info_t

struct layer3_switch_psfp_meter_filter_info_t

Information of PSFP Meter filter.

Data Fields
uint32_t meter_filter_hw_id PSFP Meter filter ID for hardware.
layer3_switch_psfp_filter_status_t status Status of PSFP Meter filter.
layer3_switch_psfp_meter_filter_cfg_t * p_psfp_meter_filter_cfg Pointer to configuration of PSFP Meter filter.

◆ layer3_switch_psfp_error_status_bitmask_t

struct layer3_switch_psfp_error_status_bitmask_t

Bitmasks for clearing error status of throttle mode.

Data Fields
uint32_t msdu_filter_bitmask Bitmask for clearing error status bit of PSFP MSDU filter.
uint32_t meter_filter_bitmask Bitmask for clearing error status bit of PSFP Meter filter.

◆ layer3_switch_frer_cfg_t

struct layer3_switch_frer_cfg_t

Configuration of FRER feature.

Data Fields
uint32_t sys_clock Timeout check time.
uint32_t timeout_enable Timeout check valid.
uint32_t check_period Microsecond prescaler used to creates an internal clock for aging at 1 MHz to derive the timeout 1 kHz clock.

◆ layer3_switch_frer_entry_t

struct layer3_switch_frer_entry_t

FRER table entry.

Data Fields
uint32_t take_no_sequence Reject frames without R-TAG.
uint32_t sequence_history_len Sequence history length.
uint32_t set_recovery_remaining_tick Time in tick before timeout.

◆ layer3_switch_frer_entry_cfg_t

struct layer3_switch_frer_entry_cfg_t

Configuration of FRER entry (individual and sequence recovery).

Data Fields
layer3_switch_frer_entry_t individual_recovery FRER table entry for individual recovery.
layer3_switch_frer_entry_t * p_sequence_recovery Pointer to FRER entry(sequence recovery) information referenced by FRERN in this FRER entry(individual recovery).
uint32_t sequence_recovery_id

◆ layer3_switch_frer_sequence_recovery_status_t

struct layer3_switch_frer_sequence_recovery_status_t

Status of FRER sequence recovery table.

Data Fields
bool learned Flags whether the FRER entry(sequence recovery) related to this entry has been learned.
uint32_t frer_entry_index Real FRER table index of the FRER entry(sequence recovery) related to this entry.

◆ layer3_switch_descriptor_queue_cfg_t

struct layer3_switch_descriptor_queue_cfg_t

Configuration of a descriptor queue.

Data Fields
layer3_switch_descriptor_format_t descriptor_format Enable or disable extended descriptors.
layer3_switch_queue_type_t type Reception queue or transmission queue.
layer3_switch_write_back_mode_t write_back_mode Configure write-back to descriptor fields.
layer3_switch_descriptor_t * p_descriptor_array Descriptor array that use to create queue.
layer3_switch_ts_reception_process_descriptor_t * p_ts_descriptor_array TS descriptor array that use to create queue.
layer3_switch_rx_timestamp_storage_t rx_timestamp_storage Configure RX timestamp storage.
uint32_t array_length Length of descriptor array. This length includes terminate descriptor at the end.
uint32_t ports Bitmap of ports that use this queue.

◆ layer3_switch_cbs_cfg_t

struct layer3_switch_cbs_cfg_t

Configuration of Credit Based Shaper.

Data Fields
uint8_t band_width_list[8] CBS band width [%] of each queue.
uint8_t max_burst_num_list[8] Maximum burst frame number of each queue.

◆ layer3_switch_port_cfg_t

struct layer3_switch_port_cfg_t

Configuration of each Ethernet port.

Data Fields

uint8_t * p_mac_address
 Pointer to MAC address.

bool forwarding_to_cpu_enable
 Enable or disable reception on CPU.

layer3_switch_cbs_cfg_t * p_cbs_cfg
 Pointer to CBS configuration.

void(* p_callback )(ether_switch_callback_args_t *p_args)
 Callback provided when an ISR occurs.

ether_switch_callback_args_t * p_callback_memory
 Pointer to optional callback argument memory.

void * p_context
 Pointer to context to be passed into callback function.


◆ layer3_switch_descriptor_queue_status_t

struct layer3_switch_descriptor_queue_status_t

Status of a descriptor queue.

Data Fields
uint32_t head Index at the head of the queue. This used for GetDescriptor API.
uint32_t tail Index at the tail of the queue. This used for SetDescriptor API.
bool created This queue is already created.
layer3_switch_descriptor_queue_cfg_t
const *		 p_queue_cfg Configuration of this queue.
bool rx_available Indicates whether the queue is available for reception.

◆ layer3_switch_ipv6_filter_address_offset_t

struct layer3_switch_ipv6_filter_address_offset_t

IP address offset for creating IPv6 filter of Layer3 forwarding.

Data Fields
uint8_t offset Offset of IPv6 address.
layer3_switch_ip_address_direction_t direction Select source or destination.

◆ layer3_switch_l3_stream_filter_cfg_t

struct layer3_switch_l3_stream_filter_cfg_t

Configuration of stream filter in Layer3 forwarding.

Data Fields
uint16_t filter_field_bitmask Bitmask of which feilds is enabled in stream filter. Use layer3_switch_l3_filter_bitmask_t.
layer3_switch_ipv6_filter_address_offset_t ipv6_address0 Offset of IPv6 address 0.
layer3_switch_ipv6_filter_address_offset_t ipv6_address1 Offset of IPv6 address 1.

◆ layer3_switch_frame_vlan_tag_t

struct layer3_switch_frame_vlan_tag_t

VLAN tag structure.

Data Fields
uint16_t pcp: 3 Priority Code Point (3 bit).
uint16_t dei: 1 Drop Eligible Indicator (1 bit).
uint16_t id: 12 VLAN ID (12 bit).

◆ layer3_switch_frame_filter_t

struct layer3_switch_frame_filter_t

Frame filter of a MAC/VLAN/Layer3 forwarding entry. Set values for members required for filtering.

Data Fields
layer3_switch_table_entry_type_t entry_type Type of this entry. Select MAC, VLAN or Layer3.
uint8_t * p_destination_mac_address Destination MAC address.
uint8_t * p_source_mac_address Source MAC address.
layer3_switch_frame_vlan_tag_t vlan_c_tag VLAN C-TAG.
layer3_switch_frame_vlan_tag_t vlan_s_tag VLAN S-TAG.
layer3_switch_ip_version_t ip_version IP version. Select IPv4, IPv6, or not IP packet.
uint8_t protocol IP protocol.
uint8_t * p_source_ip_address Source IP address.
uint8_t * p_destination_ip_address Destination IP address.
uint16_t layer4_source_port TCP/UDP source port.
uint16_t layer4_destination_port TCP/UDP destination port.

◆ layer3_switch_l3_filter_t

struct layer3_switch_l3_filter_t

Store filter information of Layer3 forwarding entry.

Data Fields
layer3_switch_frame_filter_t frame Target frame format that used to Layer3 forwarding.

◆ layer3_switch_l3_update_config_t

struct layer3_switch_l3_update_config_t

Configuration of a L2/L3 update feature for output frames.

Data Fields
uint32_t enable_destination_ports Destination ports that this update config is enabled.
uint32_t update_field_bitmask Bit mask of which fields will be updated. Use layer3_switch_l3_update_bitmask_t.
uint8_t * p_mac_destination_address MAC Destination Address.
layer3_switch_frame_vlan_tag_t vlan_c_tag VLAN C-tag.
layer3_switch_frame_vlan_tag_t vlan_s_tag VLAN S-tag.
layer3_switch_forwarding_r_tag_t r_tag_update_mode R-TAG update setting.
bool sequence_number_generation_enable Flags whether sequence number generation (FRER) is enabled for this entry.

◆ layer3_switch_table_entry_cfg_t

struct layer3_switch_table_entry_cfg_t

Table entry configuration of MAC/VLAN/Layer3 forwarding.

Data Fields
bool entry_enable Enable or disable entry. If this field is false, entry will be removed.
bool security_enable Entry is secure or not.
layer3_switch_psfp_msdu_filter_cfg_t * p_psfp_msdu_filter_cfg Pointer to configuration of PSFP MDSU filter.
layer3_switch_psfp_meter_filter_cfg_t * p_psfp_meter_filter_cfg Pointer to configuration of PSFP Meter filter.
layer3_switch_frer_entry_cfg_t * p_frer_entry_cfg Configuration of the FRER entry(individual recovery) for this L3 entry (set to NULL : FRER is not valid in this L3 entry).
uint32_t destination_ports Destination ports of forwarding.
uint32_t source_ports Source ports that enable forwarding of incoming frame.
uint32_t destination_queue_index Destination queue. This fields is only used when a destination port is CPU.
uint32_t internal_priority_update_enable Enable to update internal priority.
uint32_t internal_priority_update_value Internal priority when updating is enabled.
union layer3_switch_table_entry_cfg_t __unnamed__

◆ layer3_switch_table_entry_t

struct layer3_switch_table_entry_t

Table entry of MAC/VLAN/Layer3 forwarding.

Data Fields
layer3_switch_frame_filter_t target_frame Target frame of forwarding by this entry.
layer3_switch_table_entry_cfg_t entry_cfg Configuration of this entry.

◆ layer3_switch_forwarding_port_cfg_t

struct layer3_switch_forwarding_port_cfg_t

Configuration of forwarding feature for each port.

Data Fields
bool mac_table_enable Enable MAC table and forwarding feature.
bool mac_reject_unknown Reject frame with unknown MAC address.
bool mac_hardware_learning_enable Enable hardware learning and migration.
bool vlan_table_enable Enable VLAN table and forwarding feature.
bool vlan_reject_unknown Reject frame with unknown VLAN ID.
layer3_switch_vlan_ingress_mode_t vlan_ingress_mode Select Tag-based VLAN or Port-based VLAN for incoming frame.
layer3_switch_vlan_egress_mode_t vlan_egress_mode Tagging/untagging mode for outgoing frame.
layer3_switch_frame_vlan_tag_t vlan_s_tag S-TAG of this port. When egress mode is hardware SC-TAG, add this to outgoing frame.
layer3_switch_frame_vlan_tag_t vlan_c_tag C-TAG of this port. When egress mode is hardware C-TAG, add this to outgoing frame.
bool layer3_table_enable Enable Layer3 table and forwarding feature.
bool layer3_reject_unknown Reject frame that not found in Layer3 table.
bool layer3_ipv4_filter_enable Enable IPv4 stream filter.
bool layer3_ipv6_filter_enable Enable IPv6 stream filter.
bool layer3_l2_filter_enable Enable L2 stream filter.

◆ layer3_switch_table_t

struct layer3_switch_table_t

Forwarding table containing MAC/VLAN/Layer3 forwarding entries.

Data Fields
layer3_switch_table_entry_t * p_mac_entry_list List of MAC entries.
uint32_t mac_list_length Length of the MAC entry list.
layer3_switch_table_entry_t * p_vlan_entry_list List of VLAN entries.
uint32_t vlan_list_length Length of the VLAN entry list.
layer3_switch_table_entry_t * p_l3_entry_list List of Layer3 entries.
uint32_t l3_list_length Length of the Layer3 entry list.

◆ layer3_switch_table_cfg_t

struct layer3_switch_table_cfg_t

Configuration of the forwarding table.

Data Fields
layer3_switch_table_t * p_table Pointer to forwarding table.
layer3_switch_forwarding_port_cfg_t port_cfg_list[BSP_FEATURE_ETHER_NUM_CHANNELS+1] Forwarding configuration of each port.
uint32_t unsecure_entry_maximum_num Maximum number of unsecure entries.
bool mac_entry_aging_enable Enable aging feature of MAC table.
uint32_t mac_entry_aging_time_sec Time[s] to delete an entry by aging.
layer3_switch_vlan_mode_t vlan_mode VLAN mode options: NO VLAN, C-TAG, or SC-TAG.
layer3_switch_l3_stream_filter_cfg_t l3_stream_filter_cfg Configuration of stream filter in Layer3 forwarding.
layer3_switch_frer_cfg_t frer_cfg Configuration of FRER feature.

◆ layer3_switch_extended_cfg_t

struct layer3_switch_extended_cfg_t

ESWM extension configures each Ethernet port and forwarding feature.

Data Fields
ether_phy_instance_t const * p_ether_phy_instances[BSP_FEATURE_ETHER_NUM_CHANNELS] List of pointers to ETHER_PHY instance.
gptp_instance_t const * p_gptp_instance Pointer to a gPTP instance.
uint32_t fowarding_target_port_masks[BSP_FEATURE_ETHER_NUM_CHANNELS+1] List of ports to which incoming frames are forwarded.
uint8_t * p_mac_addresses[BSP_FEATURE_ETHER_NUM_CHANNELS] [DEPRECATED] MAC address of each port.
uint32_t ipv_queue_depth_list[BSP_FEATURE_ETHER_NUM_CHANNELS][BSP_FEATURE_ESWM_ETHA_IPV_QUEUE_NUM] List of IPV queue depth for each port.
uint32_t ipv_queue_preemptable_bitmask[BSP_FEATURE_ETHER_NUM_CHANNELS] Bitmask of IPV queues that contain preemptable frames.
layer3_switch_preemptable_frame_fragment_size_t frame_preemption_fragment_size[BSP_FEATURE_ETHER_NUM_CHANNELS] Minimum fragment size of preemptable frame.
layer3_switch_l3_filter_t * l3_filter_list Filter list of Layer3 routing.
uint32_t l3_filter_list_length Length of Layer3 filter list.
layer3_switch_port_cfg_t * p_port_cfg_list[BSP_FEATURE_ETHER_NUM_CHANNELS] Configuration for each port.
IRQn_Type etha_error_irq_port_0 ETHA error interrupt number for port 0.
IRQn_Type etha_error_irq_port_1 ETHA error interrupt number for port 1.
uint8_t etha_error_ipl_port_0 ETHA error interrupt priority for port 0.
uint8_t etha_error_ipl_port_1 ETHA error interrupt priority for port 1.
uint8_t gptp_timer_numbers[BSP_FEATURE_ESWM_GPTP_TIMER_NUM] List of timer numbers for transmission/reception timestamp.

◆ layer3_switch_instance_ctrl_t

struct layer3_switch_instance_ctrl_t

LAYER3_SWITCH control block. DO NOT INITIALIZE. Initialization occurs when ether_switch_api_t::open is called.

Data Fields

uint32_t open
 Used to determine if the channel is configured.

ether_switch_cfg_t const * p_cfg
 Pointer to initial configurations.

R_GWCA0_Type * p_gwca_reg
 Pointer to GWCA register.

uint32_t allocated_descriptor_queue_index
 Index of the descriptor pool.

layer3_switch_basic_descriptor_t p_descriptor_queue_list [LAYER3_SWITCH_CFG_AVAILABLE_QUEUE_NUM]
 Descriptor queue lists used by hardware.

layer3_switch_descriptor_queue_status_t p_queues_status [LAYER3_SWITCH_CFG_AVAILABLE_QUEUE_NUM]
 Status of each descriptor queues.

layer3_switch_port_cfg_t p_port_cfg_list [BSP_FEATURE_ETHER_NUM_CHANNELS]
 Configuration for each port.

layer3_switch_table_status_t table_status
 Forwarding table is initialized or not.

uint32_t l3_entry_count
 Counts of valid LAYER3 entry.

uint8_t l3_routing_number
 Routing number for L2/L3 update feature.

uint8_t l3_remapping_number
 Remapping number for L2/L3 update feature.

layer3_switch_ts_descriptor_queue_status_t ts_descriptor_queue_status_list [BSP_FEATURE_ESWM_TS_DESCRIPTOR_QUEUE_MAX_NUM]
 Status of TS reception descriptor queues.

layer3_switch_psfp_msdu_filter_info_t psfp_msdu_filter_info_list [BSP_FEATURE_ESWM_PSFP_MSDU_FILTER_MAX_NUM]
 List of information of PSFP MSDU filter.

layer3_switch_psfp_meter_filter_info_t psfp_meter_filter_info_list [BSP_FEATURE_ESWM_PSFP_METER_FILTER_SINGLE_BUCKET_METERS_MAX_NUM]
 List of information of PSFP Meter filter.

uint32_t valid_frer_entry_num
 Number of valid FRER entry.

layer3_switch_frer_sequence_recovery_status_t frer_sequence_recovery_status [BSP_FEATURE_ESWM_FRER_TABLE_SIZE]
 Status of table for each FRER sequence recovery entry.

uint32_t used_frer_sequence_generator_num
 Number of the sequence number generator.

bool frame_preemption_available [BSP_FEATURE_ETHER_NUM_CHANNELS]
 Status of the frame preemption verification.

void(* p_callback )(ether_switch_callback_args_t *p_args)
 Callback provided when an ISR occurs.

ether_switch_callback_args_t * p_callback_memory
 Pointer to optional callback argument memory.

void * p_context
 Pointer to context to be passed into callback function.


◆ layer3_switch_tas_entry_t

struct layer3_switch_tas_entry_t

Configuration of the gate operation.

Data Fields
layer3_switch_tas_gate_state_t state Gate state.
uint32_t time Time associated with the entry gate state [nsec].

◆ layer3_switch_tas_gate_cfg_t

struct layer3_switch_tas_gate_cfg_t

Configuration of the gate.

Data Fields
layer3_switch_tas_gate_state_t initial_gate_state Initial gate state when the cycle starts.
uint8_t tas_entry_num Number of TAS entries included in this gate.
layer3_switch_tas_entry_t * p_tas_entry_list List of TAS entries included in this gate.

◆ layer3_switch_tas_cfg_t

struct layer3_switch_tas_cfg_t

Configuration of the TAS.

Data Fields
uint8_t gptp_timer_number gPTP timer number.
uint32_t cycle_time_start_high Upper 32 bits of TAS cycle start time [nsec].
uint32_t cycle_time_start_low Lower 32 bits of TAS cycle start time [nsec].
uint32_t cycle_time TAS cycle time [nsec].
layer3_switch_tas_gate_cfg_t gate_cfg_list[8] List of TAS gate configurations.

Enumeration Type Documentation

◆ layer3_switch_descriptor_type_t

enum layer3_switch_descriptor_type_t

GWCA descriptor type.

Enumerator
LAYER3_SWITCH_DESCRIPTOR_TYPE_LINKFIX

Linkfix. Control element pointing to next descriptor in chain.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_IS

Frame Empty Incremental Start.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_IC

Frame Empty Incremental Continue.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_ND

Frame Empty No Data Storage.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY

Frame Empty.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_START

Frame Empty Start.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_MID

Frame Empty Mid.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEMPTY_END

Frame Empty End.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FSINGLE

Frame Single.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FSTART

Frame Start.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FMID

Frame Mid.

LAYER3_SWITCH_DESCRIPTOR_TYPE_FEND

Frame End.

LAYER3_SWITCH_DESCRIPTOR_TYPE_LEMPTY

Link Empty.

LAYER3_SWITCH_DESCRIPTOR_TYPE_EEMPTY

EOS Empty.

LAYER3_SWITCH_DESCRIPTOR_TYPE_LINK

Link.

LAYER3_SWITCH_DESCRIPTOR_TYPE_EOS

End of Set.

◆ layer3_switch_port_bitmask_t

enum layer3_switch_port_bitmask_t

Bitmasks for each port.

Enumerator
LAYER3_SWITCH_PORT_BITMASK_PORT0

Port 0.

LAYER3_SWITCH_PORT_BITMASK_PORT1

Port 1.

LAYER3_SWITCH_PORT_BITMASK_PORT2

Port 2.

◆ layer3_switch_queue_type_t

enum layer3_switch_queue_type_t

Descriptor queue type.

Enumerator
LAYER3_SWITCH_QUEUE_TYPE_RX

Reception queue.

LAYER3_SWITCH_QUEUE_TYPE_TX

Transmission queue.

◆ layer3_switch_descriptor_format_t

enum layer3_switch_descriptor_format_t

Descriptor format type.

Enumerator
LAYER3_SWITCH_DISCRIPTOR_FORMTAT_BASIC

Using basic descriptor.

LAYER3_SWITCH_DISCRIPTOR_FORMTAT_EXTENDED

Using extended descriptor with additional fields.

LAYER3_SWITCH_DISCRIPTOR_FORMTAT_TX_TIMESTAMP

Using TX timestamp descriptor.

◆ layer3_switch_write_back_mode_t

enum layer3_switch_write_back_mode_t

Write back mode.

Enumerator
LAYER3_SWITCH_WRITE_BACK_MODE_FULL

All fields are updated by hardware.

LAYER3_SWITCH_WRITE_BACK_MODE_DISABLE

No fields are updated by hardware.

LAYER3_SWITCH_WRITE_BACK_MODE_KEEP_DT

Fields exclude DT are updated by hardware.

◆ layer3_switch_ip_version_t

enum layer3_switch_ip_version_t

IP version options.

Enumerator
LAYER3_SWITCH_IP_VERSION_NONE

Not IP packet.

LAYER3_SWITCH_IP_VERSION_IPV4

IPv4 packet.

LAYER3_SWITCH_IP_VERSION_IPV6

IPv6 packet.

◆ layer3_switch_ip_address_direction_t

enum layer3_switch_ip_address_direction_t

Direction of IP address.

Enumerator
LAYER3_SWITCH_IP_ADDRESS_DIRECTION_SOURCE

Use IP source address in stream ID.

LAYER3_SWITCH_IP_ADDRESS_DIRECTION_DESTINATION

Use IP destination address in stream ID.

◆ layer3_switch_magic_packet_detection_t

enum layer3_switch_magic_packet_detection_t

Magic packet detection options.

Enumerator
LAYER3_SWITCH_MAGIC_PACKET_DETECTION_ENABLE

Enable magic packet detection.

LAYER3_SWITCH_MAGIC_PACKET_DETECTION_DISABLE

Disable magic packet detection.

◆ layer3_switch_vlan_mode_t

enum layer3_switch_vlan_mode_t

VLAN detection mode.

Enumerator
LAYER3_SWITCH_VLAN_MODE_NO_VLAN

Not use VLAN feature.

LAYER3_SWITCH_VLAN_MODE_C_TAG

Detect and use VLAN C-TAG.

LAYER3_SWITCH_VLAN_MODE_SC_TAG

Detect and use VLAN SC-TAG.

◆ layer3_switch_vlan_ingress_mode_t

enum layer3_switch_vlan_ingress_mode_t

VLAN ingress mode determines whether the switch operates with tagged VLAN or port-based VLAN.

Enumerator
LAYER3_SWITCH_VLAN_INGRESS_MODE_TAG_BASED

Use VLAN ID of the incoming frame.

LAYER3_SWITCH_VLAN_INGRESS_MODE_PORT_BASED

Use VLAN ID of the incoming port.

◆ layer3_switch_vlan_egress_mode_t

enum layer3_switch_vlan_egress_mode_t

VLAN egress mode determines the VLAN tag that is added to output frames.

Enumerator
LAYER3_SWITCH_VLAN_EGRESS_MODE_NO_VLAN

Frame always outgoing without VLAN TAG.

LAYER3_SWITCH_VLAN_EGRESS_MODE_C_TAG

Frame outgoing with C-TAG of incoming frame.

LAYER3_SWITCH_VLAN_EGRESS_MODE_HW_C_TAG

Frame always outgoing with C-TAG of output port.

LAYER3_SWITCH_VLAN_EGRESS_MODE_SC_TAG

Frame always outgoing with SC-TAG of incoming frame.

LAYER3_SWITCH_VLAN_EGRESS_MODE_HW_SC_TAG

Frame always outgoing with SC-TAG of output port.

◆ layer3_switch_ip_protocol_t

enum layer3_switch_ip_protocol_t

IP protocols type.

Enumerator
LAYER3_SWITCH_IP_PROTOCOL_TCP

IP protocol is TCP.

LAYER3_SWITCH_IP_PROTOCOL_UDP

IP protocol is UDP.

◆ layer3_switch_forwarding_r_tag_t

enum layer3_switch_forwarding_r_tag_t

R-TAG filed update options.

Enumerator
LAYER3_SWITCH_FORWARDING_R_TAG_UPDATE

Incoming frame with R-TAG will be updated with new R-TAG.

LAYER3_SWITCH_FORWARDING_R_TAG_ALWAYS_ADD

ALl incoming frame will be added new R-TAG.

LAYER3_SWITCH_FORWARDING_R_TAG_ALWAYS_ELIMINATE

ALl incoming frame will be removed R-TAG.

◆ layer3_switch_l3_filter_bitmask_t

enum layer3_switch_l3_filter_bitmask_t

Frame filters options for layer3 forwarding.

Enumerator
LAYER3_SWITCH_L3_FILTER_BITMASK_MAC_DESTINATION

Enable MAC destination address.

LAYER3_SWITCH_L3_FILTER_BITMASK_MAC_SOURCE

Enable MAC source address.

LAYER3_SWITCH_L3_FILTER_BITMASK_STAG_ID

Enable VLAN ID of S-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_STAG_PCP

Enable PCP of S-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_STAG_DEI

Enable DEI of S-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_CTAG_ID

Enable VLAN ID of C-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_CTAG_PCP

Enable PCP of C-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_CTAG_DEI

Enable DEI of C-TAG.

LAYER3_SWITCH_L3_FILTER_BITMASK_IP_SOURCE_ADDRESS

Enable IP source address.

LAYER3_SWITCH_L3_FILTER_BITMASK_IP_DESTINATION_ADDRESS

Enable IP destination address.

LAYER3_SWITCH_L3_FILTER_BITMASK_PROTOCOL

Enable IP protocol.

LAYER3_SWITCH_L3_FILTER_BITMASK_IP_SOURCE_PORT

Enable layer4 source port.

LAYER3_SWITCH_L3_FILTER_BITMASK_IP_DESTINATION_PORT

Enable layer4 destination port.

◆ layer3_switch_l3_update_bitmask_t

enum layer3_switch_l3_update_bitmask_t

Enable L2/L3 update feature.

Enumerator
LAYER3_SWITCH_L3_UPDATE_BITMASK_TTL

Update TTL.

LAYER3_SWITCH_L3_UPDATE_BITMASK_MAC_DESTINATION

Update MAC destination address.

LAYER3_SWITCH_L3_UPDATE_BITMASK_MAC_SOURCE

Update MAC source address.

LAYER3_SWITCH_L3_UPDATE_BITMASK_CTAG_ID

Update VLAN ID of C-TAG.

LAYER3_SWITCH_L3_UPDATE_BITMASK_CTAG_PCP

Update PCP of C-TAG.

LAYER3_SWITCH_L3_UPDATE_BITMASK_CTAG_DEI

Update DEI of C-TAG.

LAYER3_SWITCH_L3_UPDATE_BITMASK_STAG_ID

Update VLAN ID of C-TAG.

LAYER3_SWITCH_L3_UPDATE_BITMASK_STAG_PCP

Update PCP of C-TAG.

LAYER3_SWITCH_L3_UPDATE_BITMASK_STAG_DEI

Update DEI of C-TAG.

◆ layer3_switch_table_entry_type_t

enum layer3_switch_table_entry_type_t

Table entry type for forwarding feature.

Enumerator
LAYER3_SWITCH_TABLE_ENTRY_TYPE_EMPTY

Entry is not initialized yet.

LAYER3_SWITCH_TABLE_ENTRY_TYPE_MAC

Entry of MAC table.

LAYER3_SWITCH_TABLE_ENTRY_TYPE_VLAN

Entry of VLAN table.

LAYER3_SWITCH_TABLE_ENTRY_TYPE_LAYER3

Entry of Layer3 table.

◆ layer3_switch_table_status_t

enum layer3_switch_table_status_t

Table status for forwarding feature.

Enumerator
LAYER3_SWITCH_TABLE_STATUS_UNINITIALIZED

Forwarding table is uninitialized.

LAYER3_SWITCH_TABLE_STATUS_INITIALIZED

Forwarding table is initialized.

◆ layer3_switch_tas_gate_state_t

enum layer3_switch_tas_gate_state_t

TAS gate state.

Enumerator
LAYER3_SWITCH_TAS_GATE_STATE_CLOSE

Gate is closed.

LAYER3_SWITCH_TAS_GATE_STATE_OPEN

Gate is opened.

◆ layer3_switch_rx_timestamp_storage_t

enum layer3_switch_rx_timestamp_storage_t

Enable or disable rx timestamp storage.

Enumerator
LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_DISABLE

Timestamp is not added in the descriptor.

LAYER3_SWITCH_RX_TIMESTAMP_STORAGE_ENABLE

Timestamp is added in the descriptor.

◆ layer3_switch_ts_descriptor_queue_status_t

enum layer3_switch_ts_descriptor_queue_status_t

Used or not timestamp descriptor queue.

Enumerator
LAYER3_SWITCH_TS_DESCRIPTOR_QUEUE_STATUS_UNUSED

TS descriptor queue is unused.

LAYER3_SWITCH_TS_DESCRIPTOR_QUEUE_STATUS_USED

TS descriptor queue is used.

◆ layer3_switch_preemptable_frame_fragment_size_t

enum layer3_switch_preemptable_frame_fragment_size_t

Fragment size of preemptable frame.

Enumerator
LAYER3_SWITCH_PREEMPTABLE_FRAME_FRAGMENT_SIZE_64BYTE

Minimum fragment size is 64 byte.

LAYER3_SWITCH_PREEMPTABLE_FRAME_FRAGMENT_SIZE_128BYTE

Minimum fragment size is 64 byte.

LAYER3_SWITCH_PREEMPTABLE_FRAME_FRAGMENT_SIZE_192BYTE

Minimum fragment size is 64 byte.

LAYER3_SWITCH_PREEMPTABLE_FRAME_FRAGMENT_SIZE_256BYTE

Minimum fragment size is 64 byte.

◆ layer3_switch_psfp_filter_status_t

enum layer3_switch_psfp_filter_status_t

Used or not PSFP MSDU filter.

Enumerator
LAYER3_SWITCH_PSFP_FILTER_STATUS_UNUSED

PSFP filter is unused.

LAYER3_SWITCH_PSFP_FILTER_STATUS_USED

PSFP filter is used.

◆ layer3_switch_msdu_filter_mode_t

enum layer3_switch_msdu_filter_mode_t

PSFP MSDU filter mode.

Enumerator
LAYER3_SWITCH_MSDU_FILTER_NORMAL_MODE

Filtering occurs if LDESCR.TPL[GWCA] is greater than FWPMPCi.MSDUV.

LAYER3_SWITCH_MSDU_FILTER_THROTTLE_MODE

Filtering occurs if LDESCR.TPL[GWCA] is greater than FWPMPCi.MSDUV. Frames with FWEIS2.PMFS[i] set are also filtered.

◆ layer3_switch_meter_filter_mode_t

enum layer3_switch_meter_filter_mode_t

PSFP Meter filter mode.

Enumerator
LAYER3_SWITCH_METER_FILTER_NORMAL_MODE

Any frame linked to Meter filter i thanks to L3 table received when not enough token is available will be red.

LAYER3_SWITCH_METER_FILTER_THROTTLE_MODE

Any frame linked to Meter filter i thanks to L3 table received when not enough token is available or when FWEIS5.PMRFSi is set will be red.

◆ layer3_switch_meter_filter_coupling_status_t

enum layer3_switch_meter_filter_coupling_status_t

Enable or disable copling flag.

Enumerator
LAYER3_SWITCH_METER_FILTER_COUPLING_STATUS_DISABLE

When green bucket is full, CIR tokens are lost.

LAYER3_SWITCH_METER_FILTER_COUPLING_STATUS_ENABLE

When green bucket is full, CIR tokens are added to the yellow bucket.

◆ layer3_switch_meter_filter_drop_red_frame_t

enum layer3_switch_meter_filter_drop_red_frame_t

Drop or not red frames.

Enumerator
LAYER3_SWITCH_METER_FILTER_NOT_DROP_RED_FRAME

Red frames are not dropped by Meter filter.

LAYER3_SWITCH_METER_FILTER_DROP_RED_FRAME

Red frames are dropped by Meter filter.

◆ layer3_switch_meter_filter_dei_handling_policy_t

enum layer3_switch_meter_filter_dei_handling_policy_t

DEI handling policy for determining a frame color.

Enumerator
LAYER3_SWITCH_METER_FILTER_DEI_HANDLING_POLICY_IGNORE

Ignore the DEI of the VLAN TAG, and the frame color is determined only by the PCP value.

LAYER3_SWITCH_METER_FILTER_DEI_HANDLING_POLICY_YELLOW

When the DEI of the VLAN TAG is 1, treat it as a yellow frame.

◆ layer3_switch_meter_filter_pcp_handling_policy_t

enum layer3_switch_meter_filter_pcp_handling_policy_t

PCP handling policy for determining a frame color.

Enumerator
LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_GREEN_ALL

Treat all frames as green, regardless of the PCP.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_1

Treat a frame as yellow when the PCP is less than 1.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_2

Treat a frame as yellow when the PCP is less than 2.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_3

Treat a frame as yellow when the PCP is less than 3.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_4

Treat a frame as yellow when the PCP is less than 4.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_5

Treat a frame as yellow when the PCP is less than 5.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_6

Treat a frame as yellow when the PCP is less than 6.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_BELOW_7

Treat a frame as yellow when the PCP is less than 7.

LAYER3_SWITCH_METER_FILTER_PCP_HANDLING_POLICY_YELLOW_ALL

Treat all frames as yellow, regardless of the PCP.

Function Documentation

◆ R_LAYER3_SWITCH_Open()

fsp_err_t R_LAYER3_SWITCH_Open ( ether_switch_ctrl_t *const  p_ctrl,
ether_switch_cfg_t const *const  p_cfg
)

Initializes the switch module and applies configurations. Implements ether_switch_api_t::open.

Return values
FSP_SUCCESSChannel opened successfully.
FSP_ERR_ASSERTIONPointer to control block, config structure or extended config structure is NULL.
FSP_ERR_ALREADY_OPENControl block has already been opened or channel is being used by another instance. Call close() then open() to reconfigure.
FSP_ERR_ETHER_ERROR_PHY_COMMUNICATIONInitialization of PHY-LSI failed.
FSP_ERR_INVALID_ARGUMENTInvalid configuration value.

◆ R_LAYER3_SWITCH_Close()

fsp_err_t R_LAYER3_SWITCH_Close ( ether_switch_ctrl_t *const  p_ctrl)

Disables interrupts and stop module. Implements ether_switch_api_t::close.

Return values
FSP_SUCCESSChannel successfully closed.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENControl block is not open.

◆ R_LAYER3_SWITCH_CreateDescriptorQueue()

fsp_err_t R_LAYER3_SWITCH_CreateDescriptorQueue ( ether_switch_ctrl_t *const  p_ctrl,
uint32_t *const  p_queue_index,
const layer3_switch_descriptor_queue_cfg_t *const  p_queue_cfg
)

Create a new descriptor queue and set it to LINKFIX table. This function must be called before calling R_LAYER3_SWITCH_SetDescriptor and R_LAYER3_SWITCH_GetDescriptor.

Return values
FSP_SUCCESSDescriptor created successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENControl block is not open.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_OUT_OF_MEMORYDescriptor queue list is depleted.
FSP_ERR_OVERFLOWTS descriptor queue is used.

◆ R_LAYER3_SWITCH_SetDescriptor()

fsp_err_t R_LAYER3_SWITCH_SetDescriptor ( ether_switch_ctrl_t *const  p_ctrl,
uint32_t  queue_index,
layer3_switch_descriptor_t const *const  p_descriptor
)

Set descriptor data to a target descriptor.

Return values
FSP_SUCCESSDescriptor set successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENControl block is not open.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_INVALID_ARGUMENTQueue index is invalid.
FSP_ERR_NOT_INITIALIZEDThis descriptor queue is not created.
FSP_ERR_IN_USETarget descriptor is now running.
FSP_ERR_OVERFLOWDescriptor queue is full.

◆ R_LAYER3_SWITCH_GetDescriptor()

fsp_err_t R_LAYER3_SWITCH_GetDescriptor ( ether_switch_ctrl_t *const  p_ctrl,
uint32_t  queue_index,
layer3_switch_descriptor_t *const  p_descriptor
)

Get descriptor data from a target descriptor.

Return values
FSP_SUCCESSDescriptor got successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENControl block is not open.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_INVALID_ARGUMENTQueue index is invalid.
FSP_ERR_NOT_INITIALIZEDThis descriptor queue is not created or target descriptor is not set.
FSP_ERR_IN_USETarget descriptor is now running.

◆ R_LAYER3_SWITCH_StartDescriptorQueue()

fsp_err_t R_LAYER3_SWITCH_StartDescriptorQueue ( ether_switch_ctrl_t *const  p_ctrl,
uint32_t  queue_index
)

Reload and enable a descriptor queue. In a TX descriptor queue, the queue start transmission. In a RX descriptor queue, the queue start reception.

Return values
FSP_SUCCESSDescriptor queue started successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENControl block is not open.
FSP_ERR_INVALID_ARGUMENTQueue index is invalid.
FSP_ERR_NOT_INITIALIZEDTarget descriptor queue is not created.
FSP_ERR_IN_USETarget descriptor queue is already running.
FSP_ERR_INVALID_DATATarget TX queue have no data.

◆ R_LAYER3_SWITCH_CallbackSet()

fsp_err_t R_LAYER3_SWITCH_CallbackSet ( ether_switch_ctrl_t *const  p_ctrl,
void(*)(ether_switch_callback_args_t *)  p_callback,
void *const  p_context,
ether_switch_callback_args_t *const  p_callback_memory
)

Updates the user callback with the option to provide memory for the callback argument structure.

Return values
FSP_SUCCESSCallback updated successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.

◆ R_LAYER3_SWITCH_ConfigurePort()

fsp_err_t R_LAYER3_SWITCH_ConfigurePort ( ether_switch_ctrl_t *const  p_ctrl,
uint8_t  port,
layer3_switch_port_cfg_t *  p_port_cfg
)

Configure Ethernet port features, including callback function for each port.

Return values
FSP_SUCCESSPort configured successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_INVALID_ARGUMENTPort number is invalid.

◆ R_LAYER3_SWITCH_AddTableEntry()

fsp_err_t R_LAYER3_SWITCH_AddTableEntry ( ether_switch_ctrl_t *const  p_ctrl,
layer3_switch_frame_filter_t const *const  p_target_frame,
layer3_switch_table_entry_cfg_t const *const  p_entry_cfg
)

Add or update an entry of the forwarding table.

Return values
FSP_SUCCESSSuccessfully add/updated an entry into the table.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_OVERFLOWThe number of unsecure entries exceeded the configured value.
FSP_ERR_WRITE_FAILEDA hardware error occurred while learning the entry.
FSP_ERR_INVALID_ARGUMENTTarget frame or entry type is invalid.
FSP_ERR_INVALID_MODEVLAN feature is disabled and a VLAN entry is passed.
FSP_ERR_NOT_INITIALIZEDThe forwarding table has not been initialized.
FSP_ERR_UNSUPPORTEDFunction is not supported.
FSP_ERR_BUFFER_EMPTYPSFP MSDU or Meter filter ID is invalid.

◆ R_LAYER3_SWITCH_SearchTableEntry()

fsp_err_t R_LAYER3_SWITCH_SearchTableEntry ( ether_switch_ctrl_t *const  p_ctrl,
layer3_switch_frame_filter_t const *const  p_target_frame,
layer3_switch_table_entry_cfg_t *const  p_entry_cfg
)

Search an entry from the forwarding table.

Return values
FSP_SUCCESSThe entry is found successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_NOT_FOUNDThe entry is not found in the table.
FSP_ERR_INVALID_ARGUMENTTarget frame or entry type is invalid.
FSP_ERR_INVALID_MODEVLAN feature is disabled and a VLAN entry is passed.
FSP_ERR_NOT_INITIALIZEDThe forwarding table has not been initialized.
FSP_ERR_UNSUPPORTEDFunction is not supported.

◆ R_LAYER3_SWITCH_ConfigureTable()

fsp_err_t R_LAYER3_SWITCH_ConfigureTable ( ether_switch_ctrl_t *const  p_ctrl,
layer3_switch_table_cfg_t const *const  p_table_cfg
)

Configure and initialize an forwarding table.

Return values
FSP_SUCCESSTable configured successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_WRITE_FAILEDFailed to add entries.
FSP_ERR_NOT_INITIALIZEDThe forwarding table has not been initialized.
FSP_ERR_OVERFLOWThe number of unsecure entries exceeded the configured value.
FSP_ERR_INVALID_ARGUMENTTarget frame or entry type is invalid.
FSP_ERR_INVALID_MODEVLAN feature is disabled and a VLAN entry is passed.
FSP_ERR_UNSUPPORTEDFunction is not supported.

◆ R_LAYER3_SWITCH_GetTable()

fsp_err_t R_LAYER3_SWITCH_GetTable ( ether_switch_ctrl_t *const  p_ctrl,
layer3_switch_table_t *const  p_table
)

Get a pointer to the forwarding table.

Return values
FSP_SUCCESSTable got successfully.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_INVALID_MODEVLAN feature is disabled and a VLAN entry list is passed.
FSP_ERR_NOT_INITIALIZEDThe forwarding table has not been initialized.
FSP_ERR_NOT_FOUNDThe entry isn't found.
FSP_ERR_INVALID_ARGUMENTInvalid configuration value.
FSP_ERR_UNSUPPORTEDFunction is not supported.

◆ R_LAYER3_SWITCH_ConfigureTAS()

fsp_err_t R_LAYER3_SWITCH_ConfigureTAS ( ether_switch_ctrl_t *const  p_ctrl,
uint8_t  port,
layer3_switch_tas_cfg_t *  p_tas_cfg
)

Configure Time Aware Shaper feature.

Return values
FSP_SUCCESSTAS configure successfully.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_POINTERPointer to a argument is NULL.
FSP_ERR_INVALID_ARGUMENTPort number is invalid.
FSP_ERR_ASSERTIONPointer to control block is NULL.
FSP_ERR_UNSUPPORTEDTAS feature is not enabled in the configuration.

◆ R_LAYER3_SWITCH_EnableTAS()

fsp_err_t R_LAYER3_SWITCH_EnableTAS ( ether_switch_ctrl_t *const  p_ctrl,
uint8_t  port
)

Enable Time Aware Shaper feature.

Return values
FSP_SUCCESSTAS enabled successfully.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_INVALID_ARGUMENTPort number is invalid.
FSP_ERR_UNSUPPORTEDTAS feature is not enabled in the configuration.
FSP_ERR_ASSERTIONPointer to control block is NULL.

◆ R_LAYER3_SWITCH_PsfpClearErrorStatus()

fsp_err_t R_LAYER3_SWITCH_PsfpClearErrorStatus ( ether_switch_ctrl_t *const  p_ctrl,
layer3_switch_psfp_error_status_bitmask_t  bitmasks
)

Clear error status bit of throttle mode.

Return values
FSP_SUCCESSStatus bit cleared successfully.
FSP_ERR_ASSERTIONA required pointer is NULL.
FSP_ERR_NOT_OPENThe control block has not been opened.
FSP_ERR_UNSUPPORTEDFunction is not supported.
